Overview of Steel Tooth Bit This superior method provides a stronger, more impact-resistant tooth than milling because the metal particle structure during forging is protected, resulting in stronger teeth. The details of Steel tooth Bit.
GREAT heat treatment process selectively carburizes the bearing wear surface to ensure the toughness of the structure. This provides long-lasting and reliable bearing performance.
Critical tooth hard-facing process is continually monitored and updated to ensure the highest quality hard facing deposit.

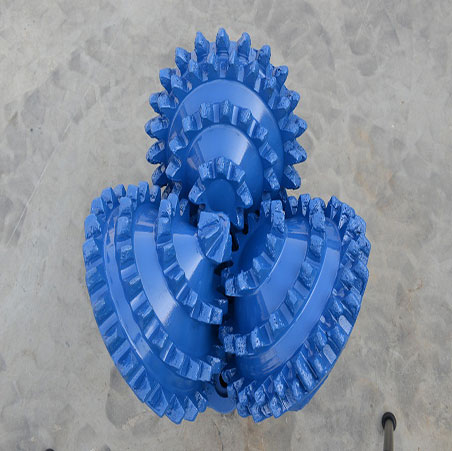

Steel tooth tricone drill bits are suitable for extremely soft formations with low compressive strength and high drillability such as clay, mudstone, chalk, etc. They are also suitable for medium strata with high compressive strength, such as soft shale, anhydrite, medium soft limestone, medium soft sandstone. Medium stratum with a hard interlayer.
The Advantage of Steel Tooth Bits
The optimized tooth structure makes the wear-resistant alloy of the tooth surface and the tooth top weld thicker and more aggressive, effectively improving the wear resistance of the tooth and greatly increasing the mechanical drilling speed.
Using a new welding process, a new welding material is used on the inner and outer teeth surfaces of this tricone rock bit so as to make the teeth more wear-resistant.
Steel tooth bits are rubber sealed for durability and reliability.
The Steel body PDC bit body is made of AISI 4145H round steel. The cost of Steel body PDC bit is lower than that of Matrix body PDC bit.
Every Steel body bit shall have heat treatment, to improve the mechanical properties of steel, to eliminate residual stress and improve the cutting performance. Each blade surface shall be welded with hardened material to increase wear resistance and erosion resistance.
Steel Body PDC Bit For sale
Most of our raw material is made in the USA and France. Our supplier technical engineers come to our factory training our welder and have a meeting to show their new products regularly. We communicate with our supplier very well and are very happy. So if our customers need, we can ask our engineer to have a meeting with each other face to face. And Every bit has its own tracking card and serial number. For any of our bits shipment to the field, you can provide the serial number, then we will check what kind of cutters we use in the steel body PDC bit and what about the design. Then we can make an optimized design very fast.
We select the advanced production technology and equipment, strictly control the whole production process, and we inspect the finished PDC drill bits.
Steel Body PDC Bit GS1606T Steel body PDC bit is made by AISI 4145H heat treatment steel manufacture, it has lower cost compare with Matrix body PDC bit.
Steel Body PDC Bit GS1915SZ Steel body PDC bit is made by AISI 4145H heat treatment steel manufacture, it has lower cost compare with Matrix body PDC bit.
Why Choose Great Steel Body PDC Bits
Steel body pdc drill bits can be customized for mining, oil well, water well, explorer well drilling.
A lot of people changing their minds to use Steel body PDC bit. Because GREAT has new technology hard facing material and sleeve to prevent washout the nozzles. so it is also widely used for Oil&Gas well drilling and water well drilling.
Bit diameters range from 3″ to 36″ with a variety of cutters and optional back-out cutters as well as various blade counts.
we can also make several design changes according to the customer’s feedback, and finally, ensure the customer’s excellent drilling effect.
Matrix VS Steel Body PDC Bits
In terms of the metallurgical properties of the two materials, steel and matrix are the exact opposite of each other. The tungsten carbide particles in the matrix are metallurgically bonded to form a hard and brittle composite material that is more wear-resistant than steel and is preferred for high solids content drilling muds. Steel, on the other hand, is ductile, tough, and well able to withstand greater impact loads.
Steel body PDC bits are milled from billet steel for a stronger, tougher construction. While steel body PDC bits are easier to manufacture, the production of matrix PDC drill bits is a rather time consuming process.
Although matrix and steel body bits perform the same task, that is drilling, the difference in their structural capabilities results in different bit geometries. The main factors affecting the design of steel body PDC bits and matrix body bits are mechanical design parameters, hydraulic conditions and the properties of the rock being grilled.
Steel Body PDC Bits Design
GREAT, one of the most trusted pdc bit manufacturers, protects exposed parts of the drill from wear and erosion by hardfacing and coating with a dedicated design.
The roller bit core barrel uses high carbon steel and a special bit Angle to maintain drilling strength and efficiency.
There are three types of core barrel for sale :
Core barrel with bullet teeth is used for cutting an annular ring in rock or concrete(also reinforced concrete). Core Barrel with roller bits is used in very strong rock formations(compressive strength >100Mpa). Cross cutter core barrel is mainly used to break rock cores that remain in the borehole after using a core barrel, also suitable for drilling hard, jointed rock(<100Mpa) and for penetrating through layers containing boulders.
Applicable layers: dense sand, gravel, and medium hard rocks, etc..
The Advantage of Core Barrel Roller Bit
The reaming bit consists mainly of four or more cones. The main cutting teeth are new wear-resistant alloys for tungsten carbide inserts and steel teeth. The new formula and the new process of high-quality tungsten carbide teeth improve the service life of the reaming drill. The guide is a cone drill bit or a scraper drill bit.
The bearing seal uses high-performance O-ring seal or metal seal bearing and special grease for imported drill bit.
Special inserts are placed on the outer diameter of the head to reduce the wear of the head during the formation of abrasives in directional and horizontal wells, prolonging the life of the drill.
Replacing Cutters and Cutting Cost-On most Hole Opener designs, the cutters can be easily replaced. The cost to replace a cutter is a fraction of the cost to replace a large barrel drill bit.
Great Drill Bits is a drill bit manufacturer, we have china rock drill bit for sale, rock drill bit, wholesale roller bit core barrel and etc. For more information, please feel free to contact us!
Matrix body OEM PDC bit GM 1605T is made by Tungsten carbide powder,this type of matrix bit body is very high hardness material, mainly used for deep Oil&Gas well drilling.
Great Drill Bits will first provide a 3D drawing according to the customers’ request, then optimized design to achieve more footage and longer working life, higher effective works. It is manufactured by mold process of PDC bit crown. The connection of this type of diamond PDC bit is made of AISI 4145H round steel and has heat treated. Threads are machined into the blank and the pin is threaded to the bit head. Joints should strictly comply with the API standard and should be inspected one by one with thread gauge and Thread Inspector.
According to the customer request, we have China PDC cutters, America PDC cutters welding to the bit body.
Matrix Body PDC Bit GM1605T Specification
The specification of Matrix body PDC bit (8 1/2″ GM1605TX)
Bit Type
8 1/2″ GM1605TX
Nozzle Qty
5NZ
IADC Code
M323
Gauge Length(mm)
40
Blade
5
Connection
4 1/2″ API REG
Cutter size(mm)
13 mm; 16 mm
N.W./G.W.(KG)
62/77
Cutter Qty
13*12; 16*38
Nozzle Size(inch)
12/32; 14/32; 15/32
Strict Quality Inspection of Matrix Body PDC Bit GM1605T
On the full production line, we have a very strict quality inspection of the material until finish bit.
The main inspection factors:
If there is a crack on the PDC cutter, then the drill bit is not acceptable.
If there is a crack that has a length of 25mm or more, then the drill bit is not acceptable.
If there is a crack that has a depth of more than 0.5mm, then the drill bit is not acceptable.
Every bit has its own tracking card and serial number.
Meanwhile, we accept OEM Matrix body PDC bit body ,the customers can send us their own design, we will make it according to their drawing. Then we have 3D scanner machine to check if it is 100% same as the customers original design. Until now, we had cooperated with the mainly OEM matrix body PDC bits manufacture in the world.
For getting more information about our products, feel free to email or call us.
1. Conical cutters
Innovative diamond element increases drilling speed, improves stability in hard-to-drill formations, Advanced rock destruction mechanism, Enhanced bit durability.
2. Shock-absorbing Cutters
Balance radial vibration load, make the bit drilling more smoothly, prevent the PDC cutter damaged in advance.
3. PDC Up-dril
Brazing high quality PDC cutters at specific angle, effectively remove the obstacles, protect the bit body from harm during up-drill process.
4. Arc PDC cutters gauge
High quality arc PDC cutters gauge, increase wear resistance and stability of the drill gauge.
5. Limiting cutter
Effectively control the front PDC cutter to drill into the depth, improve the stability and reduce its drift.
We can offer the best tricone bit for sale, if you are interested, please leave us a message.
Cangzhou Great Drill Bits Co.,Ltd., as one of the professional drill bit manufacturers in China, we design and manufacture a wide variety of Matrix body PDC (polycrystalline diamond cutter) bits. Our matrix pdc drill bits are offered in a variety of sizes, blade count and cutter sizes.
The china matrix body pdc drill bit is sintered with tungsten carbide powder. Gauge protection with natural diamond.Tungsten carbide matrix can resist erosion, wear resistance, high strength and good effect of diameter control.
The Junk Slot Area of the bit water hole can be designed according to the hydraulic parameters required by the drilling process. The shape of the pdc matrix body bit can be designed according to the formation characteristics to achieve the best use effect.
Matrix Body PDC Bit For Sale
This kind of PDC bit is designed for high-speed drilling in shale, limestone, and sandstone formations. Unlike roller cone bits, these PDC bits are one-piece matrix bodies with no moving parts. The fixed-cutters shave away the rock, making it possible to operate with higher rotation speeds more efficiently in consolidated formations.
Main Advantages of Matrix Body PDC Bit
Working on the cutting (shearing) principle, the energy consumption of rock breaking is low with wholesale matrix body pdc bits.
PDC composite sheet has super hardness, wear-resistance and self sharpness.
PDC bit is a fixed tooth bit with no moving parts, high reliability.
GREAT Matrix Body PDC Bit Advantages
Force balanced, resist impact to the blade during high-speed drilling, to make bit work stable.
Plus wear knot section, reduce collision in the high-speed rotational vibration.
Patented matrix formulation, extended bit life.
Optimal hydraulic design, easy to move out the drill cuttings and cooling.
Equipped with back reaming Cutters.
The cutter is high performance to increase the ability of anti-impact and anti-abrasive
We are here to provide you with a unique and custom solution for your specific drilling needs; from design and manufacturing to service in the field. We have what you need. Contact us now to get more information.
We can also offer sorts of rock bit for sale, anything you need, please leave us a message.
Hybrid bits are compounded by the PDC fixed cutting and the roller free cutting structure. The teeth on the cone crush the rock by impact crushing, forming broken pits at the bottom of the well, and making the bottom of the well uneven. It can weaken the strength of the bottom rock. The auxiliary function of the cone facilitates the PDC tooth to enter the formation, which is more beneficial to the PDC tooth scraping and cutting rock.
Developed a personalized composite drill bit series for complex hard-to-drill formations, which has strong formation adaptability in difficult-drilling formations such as hard formation abrasive formations, tight mud shale, and heterogeneous formations such as conglomerate formations. High rock breaking efficiency and fast drilling speed.
Hybrid drills bits produced by Great Drill Bits combine PDC and cone drill technology for smoother drilling, better torque management, and precise maneuverability.
The great brand of hybrid drills is a superior directional drill for motor and rotary applications, offering higher cumulative speed capability, damped torque response and precise steering capability on a variety of bottom hole assemblies.
The Details of Hybrid Drill Bit
The Advantage of Hybrid Drill Bit
PDC is matched with cone optimization, and the china pdc drill bit has strong adaptability and high rock-breaking efficiency in hard-drilling strata.
The hybrid bit utilizes the cutting advantages of PDCs soft formations and the rock breaking strength and stability of roller cones in hard or intercalated formations, with the potential to maintain a higher total rate of penetration (ROP) than an older cone or PDC single bit over a larger range of footage.
The balance analysis and optimization of the composite cutting structure balance the working stability of the pdc hybrid drill bit with the adaptability of the formation and improves the service life.
Computational fluid dynamics (CFD) optimization analysis of bit watercourse and nozzle to improve flow field distribution and cleaning cooling effect.
Drag bits are manufactured from forged high-quality alloy steel and hard alloy, plus state of art welding technology and multiple precision heat treatment to provide the highest penetration rate and longest lifespan at the roughest condition.
A drag bit drilling is usually designed for soft formations such as sand, clay or some soft rock. However, they will not work well in coarse gravel or hard rock formations. Uses include drilling water wells, mining, geothermal, environmental and exploration drilling. Whenever possible, they should be used to drill pilot holes because they produce cuttings that are easiest to log.
Three-wing drill bits tend to drill faster, whereas four-wing bits are longer-lasting, more durable, and drill a straighter hole.
The Advantage of Drag Bit
The blade system allows you to replace worn or damaged individual blades rather than the entire bit. The cost of purchasing multiple blade types and sizes is much lower than the unit. Prepare a variety of blades to ensure your time on site is most effective. The drag bit is suitable for the formation with low hardness and high plasticity.
From 3 7/8″ three-step bits to 6 1/4″ four-step bits to the various sized chevron bits, this replaceable blade system offers high-quality carbide-tipped wings that weld onto your pipe or threads are cost-effective and versatile.
Cangzhou Great Drill Bits Co.,Ltd. also produces and sells various drill bits for oil fields, mines, geological surveys, hydrology exploration, engineering piling, geothermal development, Wells and other applications. At the same time, we will provide specific solutions according to customer requirements and actual wing bit drilling conditions
More types of drag bits, please visit our website.
The PDC Reamer manufactured by Great Drill Bits will be your best choice to deal with the complicated situation. Our PDC reamers brand is Crocodile.
No matter be drilling or after finish drilling, no matter what kind of formation, the“Crocodile PDC-reamer” will give you reliable, efficient drilling experience, it can increase drilling efficiency, make a more better-quality wellbore. What more, the “Crocodile PDC-reamer can prevent pipe sticking, reduce probability or malfunction.
During the drilling operation, we may have met some complicated formation, just like limestone, sticking salt and so on, the drilling stem almost be contorted like a curve of sine as the depth added. You will get a poor quality wellbore, it will be a huge challenge for tubular running. What more, reduce efficiency and need more cost.
The Details of PDC Reamer
What is the Crocodile PDC-R eamer:
Like a stabilizer;
Reduce probability or pipe-sticking;
Increase drilling efficiency;
Reduce cost;
Suit for MWD and another high-tech tool;
High-quality borehole;
Effective work with lower torque.
The Advantage of PDC Reamer
The body of “Crocodile PDC-reamer” comprised of high-quality steel or non-magnet material, it’s so reliable that it can meet all kinds of challenges. The non-magnet material suit for MWD and another high-tech tool, it can give you unprecedented operation efficient. Compare the stabilizer or conventional reamer, the carbide inserts arrangement on the blades was design by the “equal density” principle, it can effectively cut the wall of a hole. All the carbide inserts exposed in the mudflow, it can take enough cooling and lubrication. So, the wear and tear of inserts are more slowly, and also effective work at lower torque.
The special tapered surface design ensures that the cutter is exposed to the drilling fluid. Therefore, this can clean the certification and extend its life, increase fluid flow and avoid drill bit china.
This type of bi center drill bit mainly used for medium to medium-hard compressive and abrasive formation, it has medium and high-density parabolic crown and heavy cutters density for the bit has good impact resistance and anti-abrasive, high wear-resistant diamond gauge, the wholesale bi center drill bit has a longer service life.
In directional applications, bi center bit performance usually presents performance challenges in terms of efficiency versus power availability and dynamic issues.
Cangzhou Great Drill Bits Co.,Ltd. designed the bi-center bit to enlarge the wellbore diameter, to replace under reaming, to help control rouble zones and for expandable tubular.
Bi-center Bit Design
As one of drill bit manufacturers, we designed this bi-center bits with close attention to hydraulic optimization to improve chip removal and ensure effective tool cooling. In addition to the improved hydraulic configuration, the cutting configuration was carefully studied to ensure that it is both effective and balanced – not only on conventional components but also when used in combination with a bent-case motor. This design concept of bi center bits combined with GREAT’s wide range of PDC cutters grades and geometries results in a bi-center drill with excellent drilling performance.
The Specification of Bi-center Bit
Here are the bi center drill bit sizes.
Reaming Size
12 1/4″
Nozzle Qty
3NZ
Pass Thru Size
10 1/2″
Gauge Lenghth
2.5″
Blade
5
Connection
6 5/8″ API REG
Primary Cutter Size
16mm
Make up Torque(kN.m)
51.7~56.9
Rotary Speed(rpm)
60~260
Weight on Bit(KN)
30~260
Max.WOB(KN)
180
Flow Rate(lps)
35~70
The Advantage of Bi-center Bit
Our Bi-center bit is one piece body, you will never worry about broken.
We can adjust the bi-center diameter according to your casing diameter. Generally speaking, the bigger pilot bit has a smaller reaming size. The smaller pilot bit has a bigger reaming size.
GREAT’s casing protection features cutting structure that provides a reliable way to drill, protecting both the cutting structure inside the casing and the casing itself.
During the design process, the pilot and reamer cutting structure of this PDC bit are force balanced as a single unit. This provides the bi center drill bits increased drilling efficiencies in both vertical and deviated wells.
Great Drill Bits has customized manufacture several types of roller bit. The traditional single roller bit was cut by tricone roller drill bit . So it is including No.1, No.2, No.3 Cone cutters.
There are Cone 1 & cone 2 & cone3, wedge cutters design resulted in a high drilling efficiency in recommending formations. The roller cone is traditional tricone bit china legs, increased carbide quantity on the dorsal metacarpal can protect leg back from damage by debris efficiently.
The details of 120 ° U-shaped Roller bit
The Advantage of 120 ° U-shaped Roller Bit
Bearing with high saturated nitrile rubber reduces sealing pressure and improves sealing reliability.
G-Gauge protection improves the gauge ability and prolongs the service life of the bit.
A row of teeth is added between the back taper and the outer row to dress the wellbore and protect the body of the cone.
We are strictly quality control our Roller bit quality, The precision of CNC lathes is ±0.01mm, it can meet all the turning requirements. And after turning a certain number of pieces, we must change the tool of lathes to make sure the precision of the machine.
According to the manufacturing standard the quality department tests every process strictly and carefully.
The Roller bit mainly used for Rock reamer (Hole opener) For HDD (Horizontal directional drilling ) Trenchless technology.
But also used for Core barrel ,with roller bit, like piling foundation project .Our popular size is 8 1/2’’, 9 7/8’’, 12 1/4’’ and 17 1/2’’ Roller bit .If you are looking for a high quality products ,just feel free to contact with us .
More kinds of tricone roller cone drill bits , please visit our website.
Cangzhou Great Drill Bits Co.,Ltd.
