Overview of PDC Hole Opener

Drill bit opener is designed for the enlargement of pilot holes and large hole applications. They are also used for road and river crossing applications.

The hole opener is made of AISI 4145H fully heat-treated alloy steel. All products have carbide grinding teeth and inserting tools. Body and cutters are hard-faced in three different designs with different conditions and rock formations. We also can design of the PDC hole opener drill bit blade allows replaced in the field.

We offer innovative drilling technology to mitigate drill string vibration during reaming. GREAT hole opener solution can help you solve your challenges, whether you use a rotary steerable drill combination, a rotary motor drill combination, or a traditional rotary drilling system. Our reaming tools operate at high efficiency, increase equivalent cycle density (ECD), reduce the risk of fractured formations, reduce torque and drag, and overcome drilling challenges.

The Advantage of PDC Hole Opener

The body is machined out of a single block of heat-treated AISI 4145H alloy steel.

Compared to the roller hole opener, the PDC hole opener performs better during the drilling process. The post-maintenance process is much simpler, just replace the PDC cutter, which can reduce the production cost later.

Depending on the formation and the customer’s special requirements, different sizes of PDC hole openers can be produced.

Application

Hole reamer bit are designed for the enlargement of pilot holes and large hole applications. They are also used for road and river crossing aplications.

Constructure

The HDD hole opener are manufactured from AISI 4 145H fully heat-treated alloy steel. All are available with carbide-milled teeth and insert cutters. Arms and cutters are hardfaced for protection in three iferent designs for varying conditions and rock formations. The design of the hole opener llows for field-changing the cutters.

Cutting stucture

The reamer mainly consists of four or more cones. Cuting Structure with premium tungsten carbide hardfacing or premium tungsten carbide insert of formulas and new techniques is utilized, and increases wear-resistance capability of reamer.

Great Drill Bits is a drill bit manufacturer, we have hole openers for sale, hdd reamers for sale, hole opener drill bits and etc. Welcome to know more about us.

There are many drill bit manufacturing companies, but we are one of the best choices for you.

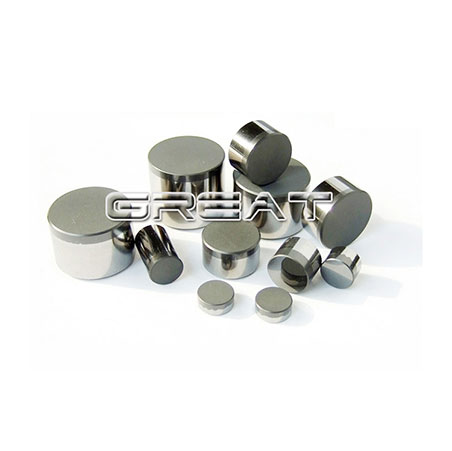

Overview of PDC Cutter

PDC cutters are made of diamond micro-powder and cemented carbide substrate sintered under ultra-high pressure and high temperature. It has high hardness, high wear resistance and thermal conductivity of diamond, and has the strength and impact toughness of cemented carbide. PDC cutters are widely used in oil well field PDC bit, geological PDC exploration bits, gas exploration bits, coal mining drilling applications. Various used for PDC bit, PDC core bit, and PDC hole opener, PDC reamer. PDC cutters’ performance has a decisive influence on the drilling effect and life of PDC bit.

We have built very close cooperation with Top brand PDC cutters manufacturers in the USA and China, we have our patented cutters to the customers drilling demand.

Our popular size is 1913mm, 1613mm, 1616mm ,1313mm, 1308mm,1305mm.

The Details of PDC cutter

The Advantage of PDC drill bit cutters

1. Conical cutters

Innovative diamond element increases drilling speed, improves stability in hard-to-drill formations, Advanced rock destruction mechanism, Enhanced bit durability.

2. PDC Up-drill

Brazing high-quality PDC cutters at a specific angle, effectively remove the obstacles, protect the bit body from harm during up-drill process.

3. Arc PDC cutters gauge

High-quality arc PDC cutters gauge, increase wear resistance and stability of the drill gauge.

If you would like to understand more about GREAT PDC cutter application ,please feel free to contact with us.

Cangzhou Great Drill Bits Co.,Ltd. is a drill bit manufacturer, we have china rock drill bits for sale, oem pdc bit cutter, pdc bit cutter, cutter pdc and etc. Want to know rock drill bits price, contact us.

Overview of PDC Core Bit

GREAT customized made Diamond core bits, which include Matrix body PDC bit and Steel body PDC bit, the Diamond core bit is used to drill an underground core (or mineral core) primarily when samples of underground rock (minerals) are required.

Every pdc core drill bits is optimized hydraulically for each cutting structure and formation application.

Each design is based on a balanced and fully covered cutting structure.

Sometimes we need to analyze the rock, so the best choice is to consult GREAT, one of the most trusted drill bit manufacturers in china, to get your right recommendation.

The Details of  PDC Core Bit

The Specification of  PDC Core Bit

Bit Size and Type	8 1/2″GMC3232	Nozzle Qty	12P
Cutter Size (mm)	Φ13mm ×30	Gauge Lenghth	1.8″
Blade	12	Connection	Chuan 7-4
Operating Parameters
Rotary Speed(rpm)	40~150	Weight on Bit(KN)	40~80
Max.WOB(KN)	90	Flow Rate(lps)	10~30

The Advantage of PDC Core Bit

The PDC Core bit has designed a shallow parabolic profile and medium cutter density for coring the medium hard formation. Nozzles options according to the hydraulic request, it is installing the size of the mainly PDC cutter is 1308mm, and the most popular blade is 6 blades,  7 blades,  8 blades,  to enhance the rock core drill bits’ ability to drill in hard formations. Special TSP gauge or PDC Arc-cutters to protect the diameter.

The superior patented tool testing method provides the best PDC cutter for any challenge.

Soft to medium-hard formation with low compressive strength interbedded with hard layers.

Cab be used for different rock types: Mudstone, limestone, anhydrite.

Application of PDC Core Bit

Polycrystalline Diamond Composite (PDC) core bits were originally designed for oil drilling. The surface of the cylindrical PDC cutters consists of high-quality synthetic diamond particles sintered together by high pressure and temperature. The PDC core bits have high tool hardness, wear resistance and toughness, and the bits are widely used in oil, gas, mining and engineering drilling fields.

PDC coring bit are ideally suited for use with high power drilling rigs operating at relatively low speeds, and offer much better drilling life and penetration than surface fixed bits.

Cangzhou Great Drill Bits Co.,Ltd. is a drill bit manufacturer, we have oil drill bits for sale for sale, underground drill bits, diamond core drill bits for rock and etc. Welcome to know more about us.

PDC drill bit is short for Polycrystalline Diamond Compact bit. The other name for the PDC drill bit is Diamond bit. As one of the most professional PDC drill bit manufacturer in China, Great bits design and manufacture a wide variety of Matrix body PDC bit and Steel body PDC bit. Produceg by Great, a drill bit factory in China, PDC bits for sale are offered in a variety of pdc drill bit sizes, blade count, and cutter sizes.

PDC Drill Bits For Sale

Matrix Body PDC Bit

Matrix body PDC bit is made by Tungsten carbide podwer, it is very high hardness material, mainly used for deep Oil & Gas well drilling.

Steel Body PDC Bit

Steel body PDC bit is made by AISI 4145H heat treatment steel manufacture, it has lower cost compare with Matrix body PDC bit.

Bi-center Bit

This type of Bi-center bit mainly used for medium to medium hard compressive and abrasive formation.

PDC Core Bit

GREAT customized made Diamond core bits ,which including Matrix body and Steel body.

RC PDC Bit

RC PDC bit from GREAT are manufactured from AISI 4145H heat-treated steel.

PDC Bit Classification by Material：

What is PDC material? According to the production material, the pdc cutters for sale on the current market can be roughly divided into the following two types:

Matrix body PDC bit: This type of diamond oem pdc drill bits is made of tungsten carbide powder, and the gauge protection is TSP.

Steel body PDC bit: With the AISI 4145H heat treatment steel (America standard steel ), the steel body PDC bit can be used for high-quality CNC machines milling pockets, blade, nozzles.

Most of the raw material Great uses for our diamond PDC bit is made in USA and France. Our supplier technical engineers will come to our factory to train our welder and have meetings with us so as to show their new products regularly. We communicate with our suppliers very well. So if our customers need it, we, as PDC drill bits manufacturers, can ask our engineers to have a meeting with each other face to face.

PDC Drill Bit Classification by Application:

Mining Industry

There are some 3-blade oem pdc drill bit mainly used for the mining industry in Australia, and Russia. The formation is very soft. Choosing a Steel body PDC bit can save more drilling costs.

Water well drilling

Having higher ROP, diamond PDC drill bits are also widely used as water well drill bits for geothermal drilling.

Oil & Gas drilling

– Polycrystalline diamond compact bit is the most widely used bit in the field of Oil &Gas drilling. Hydraulic factors are very important to the bit during drilling.

– PDC bits have been used in areas that were previously unavailable, such as harder, more abrasive, and more variable formations.

– This expansion into the new field has a great impact on the balance between the diamond (fixed cutter bit) bit and Tricone rock bit.

– The diamond PDC bit is mainly composed of the bit body, cutting teeth, nozzles, gauge protection, and API Thread connection.

If your drilling has any problem, GREAT can provide a solution and service.

PDC Drill Bit Specifications

There are several key specifications to consider when selecting a PDC drill bit. These include: Blade, Cutter Size and so on.

PDC Drill Bits Design

The advanced designing software of GREAT is the guarantee of precision and reliability of the development. Our continuous improvement for a specific application results in continuously outperforming PDC drill bits for sale than the previous ones.

PDC Drill Bits Price

How much does a PDC Bit Cost? You may be interested in this. While PDC drill bits price varies from different materials and types. To increase the efficiency and quality of use, the PDC drill bit cost is an important part of the equipment, which is why you cannot compromise on their quality. All the pdc drill bits for sale are subjected to strict quality control by GREAT to ensure that you always receive maximum satisfaction. Contact us to get the quote for your customized PDC drill bits.

PDC Drill Bit Application

Horizontal Directional Drilling

HORIZONTAL DIRECTIONAL DRILLING

Horizontal directional drilling technology is a new construction technology that combines the directional drilling technology of petroleum industry with the traditional pipeline construction method.

Great Drill Bits is a drill bit manufacturer, we have drill bit china for sale, rock drill bit, drill bit that makes big holes and etc. Welcome to know more about us.

1. The importance of diamond drill bits for rock

In the process of geological drilling and engineering exploration, diamond drill bits are widely used drilling accessories. How to improve the service life of drill bits is a problem that diamond drill bit manufacturers have been considering. The method of prolonging its service life should be considered from the three aspects of the raw material, manufacturing process and operation technology of the diamond drill.

Ⅱ. How to improve the service life of diamond drill bits for rock?

1. Raw materials

Diamond drill bit manufacturers and sales purposes are closely related. If it is a technology-based enterprise pursuing quality, they will strictly control the procurement of production materials. Only high-quality raw materials can ensure that the quality of the drill bit stands out among many brands. This is also the fundamental way to improve the service life of diamond drill bits.

2. Production process

Electroplated diamond china tungsten carbide drill bits have been developed for many years, and their production process has undergone many major changes. The production processes of different manufacturers are very different. Due to their respective operations, there is currently no complete system of diamond drill production processes that have been made public. To be sure, the production process is a direct factor in determining the quality of diamond drill bits.

3. Operation technology

If the choice of drill bit is the primary reason for its service life, then the actual operation is the secondary reason. No matter how good a diamond bit is, if there is no proper operation method, not only the ideal footage efficiency cannot be achieved, but it will also affect the wear of the bit. For example, in normal drilling, if the cleaning fluid cannot circulate normally, then the bottom of the generated high-temperature and high-speed rotation of the drill bit cannot be taken out, which can easily lead to drill bit burning accidents, not to mention the service life problem.

Cangzhou Great Drill Bits Co.,Ltd. consistently adhere to the concept of industrial development to promote energy development, adhered to innovative drive, scientific development, and is one of the largest scale companies in Asia for PDC bit and Tricone bit, Hole opener manufacturer.

Steel body PDC bit for well drilling can be customized for oil well, water well, mining, explorer well drilling.

Suitable Formation: Various hardness rocks or mud except for the hardest hardness or ununiform rocks like cobble.

Application: Water well, Petroleum & Gas, Water well, mining and tectonic.

The diameters of these PDC drill bits for sale range from 3″ to 36″ with a variety of cutters and optional back-out cutters as well as various blade counts.

Steel Body PDC Drill Bit GS1606T Specification

Specification of Steel Body PDC Drill Bit GS1606T
IADC Code	S333
Blade	6
Cutter Size (Mm)	Φ16
Face Cutters Qty	(55)1613; (42)1308; (30)1305;
Nozzles	6
Bit Connection	API 6 5/8” Reg Pin
Junk Slot Area(In2)	29.7
Gauge Length (mm)	75
Make up Torque (Kn.m)	51.7-56.9

Operating Parameters of Steel Body PDC Drill Bit GS1606T
Rotary Speed (rpm)	60-260
Weight on Bit (KN)	5,0-14,0
Max. WOB (KN)	17,0
Flow Rate (lps)	38-70

Features of Steel Body PDC Drill Bit GS1606T

Spiral blade, directional drilling design.

6 Curved Blades

16 mm Cutters

Force-Balance Design

The layout of different patented PDC cutters enhances the capability to drill hard stringers.

CFD Technology Is Applied In Optimizing Hydraulic Efficiency.

Hard alloy hydraulic sleeves are installed to increase the service life of the hydraulic components of the bit. The use of bits without hydraulic nozzles may cause the sleeves to fall to the bottom of the well and lead to wear of the cutters.

This is a 6 blade with 1613mm cutters PDC bit, which is used for vertical drilling. After optimizing the design, this bit has achieved 1.5 times higher ROP than our competitors.

Quality Inspection of Steel Body PDC Drill Bit GS1606T

As one of the most professional drill bit manufacturers in China, Great Drill Bits has strict quality inspections on every drill bit we produce. Here is the inspection process.

Cutters test

Nondestructive test

Checking the PDC pocket.

Brazing Quality inspection.

API thread test.

Bit size detection.

As a pilot drill bit manufacturer, we will do our best to meet all the needs of customers.

The Drill Bits Series We Offer

We, Cangzhou Great Drill Bits Co.,Ltd., specialized in R&D, design, production, and sales of various drill bits. The drill bits size from 3″ to 26″, HDD Hole opener from 8“- 48“, Such as PDC bit, Roller bit, Tricone bit, PDC Coring bit, Bi-center bits, Hole opener, etc. The Company consistently adheres to the concept of industrial development to promote energy development, adhered to innovative drive, scientific development, and is one of the largest scale companies in Asia for PDC bit and Tricone bit, Hole opener manufacturer.

Our PDC bit production line includes Matrix body PDC bit and Steel body PDC bit. Tricone bit is mainly Three cone bits, and according to the drilling formation different, we have TCI bit and Steel tooth bit available. In some HDD(Horizontal directional drilling ) project, we have Rock reamers for hard formation. Our Roller bit core barrel is widely used for piling foundation too.

We offer different types of directional rock drill bits for sale and can recommend the right type according to your drilling request.

Types of Rock Drill Bits

Downhole motor

Downhole motor (Mud motor) is a powered by drilling fluid that converts liquid pressure energy into mechanical energy . GREAT DRILL BITS can be manufacture and supply various sizes, type downhole motor according to the drilling demand . Downhole motor is composed of four assemblies of by-pass value, motor, cardan shaft and drive shaft. Until now it is popular use in Horizontal directional drilling and oil&Gas drilling.

PDC Bit

GREAT R&D manufacture Matrix body PDC bit and steel body PDC bit.

Hybrid Drill Bit

Hybrid drill bit conventional PDC and roller-cone bits. It is saving cost, Improves Drilling Efficiency.

Tricone Bit

Steel tooth bit and TCI bit with the latest technologies, making your drilling more efficiency and economic.

Roller Bit

Roller bit used for make hole opener and core barrel. Drilling water well, Trenchless / non-dig Non-excavation power and fiber optic pipelines and horizontal directional drilling.

PDC Hole Opener

PDC Hole Openers, are used to enlarge the pilot hole in Horizontal Directional Drilling(HDD).Widely used in construction, bridge, highway and railway construction.

Crocodile PDC Reamer

PDC Reamer is the perfect tool for large diameter HDD bores. The size of the reamer is ranging from 12″ to 50″.

Rock Reamer

GREAT DRILL customized Rock reamers size from 10” to 72”.

Roller Bit Core Barrel

Core barrel with roller bit is used in very strong rock formations(compressive strength > 100Mpa)

PDC Cutter

Popular Size: 1305, 1308,1613,1616,1913

Drag Bit

Normally drag bits are 3 wings, but we can make 4 or 5 wings following your drawings or samples.

Why Choose Great Good Quality Drill Bits:

Two manufactures: New manufacture with 40,000 square meters in Hebei Province, very near to Beijing, and build our own R&D Exchange Center in Beijing.

Government gives us a High-tech Firm Authories Certification, we got API Spec7-1 Quality Control Standard. ISO9001:2008 Quality Management System.ISO14001:2004 Environment Management System.

Mazark machines are imported from Japan.

Strong designs, engineers, production, sales and after-sales service team.

OEM&ODM service with confidentiality agreement.

We are strictly quality control our PDC bit, Tricone bit, Hole opener quality, The precision of CNC lathes is ±0.01mm, it can meet all the turning requirements. And after turning a certain numer of pieces, we must change the tool of lathes to make sure the precision of machines.

According to the manufacturing standard the quality department tests every process strictly and carefully.

As one of most professional drill bit manufacturers in China, we strictly control the whole production process, and we inspected the finished china rock drill tools, we can also make several design changes according to the customer’s feedback, and finally, ensure the customer’s excellent drilling effect.

Meanwhile, we can provide our engineer service in the field.

If you have needs to buy the best drill bit for rock, please contact us.

What are the two basic kinds of roller cone bits?

Common Tooth Shape of Roller Cone Bits

Ⅰ. The basic requirements of roller cone bit teeth

For the teeth of roller cone bits, the basic requirements are high rock breaking efficiency and long life. In order to meet this requirement, first, the geometric shape of the teeth must be reasonable; second, the material of the teeth must be wear-resistant and have sufficient strength.

Ⅱ. Common tooth types of roller cone bits

According to the type of teeth, roller cone bits can be divided into milling teeth (also called steel teeth) and cemented carbide teeth (referred to as inserts).

1. Milling tooth profile

The teeth of the milling cone bit are integrated with the cone shell. It is formed by milling the cone blank. In order to improve the wear resistance of the teeth, cemented carbide powder is applied on the tooth surface.

The tooth profile of milling teeth is mainly wedge-shaped teeth. The outer gauge gears can be made into P, T, and L shapes.

2. Insert tooth profile

a. Wedge-shaped teeth: suitable for crushing soft formations with high plasticity and medium-hard formations, with tooth tip angles ranging from 65 to 90 degrees, small tooth tip angles are suitable for soft formations, and large tooth tip angles are suitable for harder formations.

b. Scoop chisel: There is also a kind of wedge tooth with asymmetrical sides, one side of which is concave, called scoop chisel, suitable for drilling soft formations.

c. Conical tooth: There are two kinds of single cone and double cone. The rock is crushed by crushing method. The medium cone tooth of 60°-70° is used to drill medium and hard formations, such as limestone and dolomite. 90° cone and 120° double cone teeth are suitable for hard formations with high abrasiveness, such as hard sandstone and quartzite.

d. Triangular tooth: a plane is cut every 120° on the cone surface of the double cone tooth, which is suitable for the interlaced layer of hard and brittle stratum and soft and plastic stratum.

If you have needs to buy a high quality china pdc cutter, please choose Great Drill Bits!

Classification of Drill Bits

There are many manufacturers of tooth bits, and these china diamond drill bit factories provide bits of various types and structures. In order to facilitate the selection and use of roller cone bits, the International Association of Drilling Contractors (IADC) has developed a unified worldwide classification standard and numbering method for roller cone bits.

IADC stipulates that each type of drill bit is represented by three digits, and the meaning of each number is as follows:

The first digit indicates the type of tooth and the formation suitable for drilling:

1 – Milling teeth, soft ground;

2 – Tooth milling, medium to medium hard formation;

3 – Milling teeth, hard, abrasive or semi-abrasive formations;

4 – Spare;

5 – Insert teeth, soft to medium stratum;

6 – Insert teeth, medium-hard stratum;

7 – Insert teeth, hard, abrasive or semi-abrasive formation;

8 – Insert teeth, extremely hard, highly abrasive formations.

The second digit indicates that the drilled formation is subdivided into four hardness grades 1, 2, 3, and 4.

The third digit indicates the structural characteristics of the drill:

1 – Unsealed rolling bearings;

2 – T-shaped outer row tooth gauge;

3 – There are insert teeth on the gauge diameter;

4 – Sealed rolling bearing;

5 – Sealed rolling bearing, with insert teeth on the gauge diameter;

6 – Sealed sliding bearing;

7 – Sealed sliding bearing, with insert teeth on the gauge diameter;

8 – Directional well deflection bit;

9 – Other.

Advantages of roller cone bits:

1. The double action of impact and shearing breaks the rock, both the impact of the teeth and the shear caused by sliding, the rock breaking efficiency is high.

2. It is suitable for a wide range of formations and is suitable for drilling in all formations.

3. The self-washing effect of the drill bit is good, and it is not easy to mud pack.

4. Lower cost of drill bit.

Cangzhou Great Drill Bits Co.,Ltd., founded in 2010, specialized in processing research of steel and diamond materials, is involved in the R&D, design, production, and sales of petroleum equipment, No-Dig. Up to now, we have to be the top material supplier of CNPC, SINOPEC, CNOOC.

Bit Selection in Oil Drilling Bits

In the process of drilling, drill bit is the main tool to break rock, and borehole is formed bya drill bit breaking rock. The formation of a well is good or bad, and the length of time it takes is not only related to the rock characteristics of the drilled formation and the performance of the bit itself, but also related to the matching degree between the bit and the formation. The reasonable drill bit selection plays an important role in improving the drilling speed and reducing the comprehensive cost of drilling.

The bit is one of the important tools for oil drilling. Whether the bit adapts to the rock property and its quality plays a very important role in the selection of drilling technology, especially in the aspects of drilling quality, drilling speed and drilling cost. PDC bit is a rock breaking tool widely used in the oil and gas exploration and development industry today which effectively improves the mechanical drilling tools and shortens the drilling cycle.

Bit is one of the main drilling equipment. According to the different working environment and regional environment, the specification and shape of bit should also be different. When drilling oil, the bit should be selected reasonably and scientifically based on the specific needs and design scheme.

At present, there are many kinds of bits used in the petroleum industry. According to different drilling methods, the bits can be classified into diamond bits, roller bits and scraper bits. These three kinds of bits are the most basic ones.

Because of the excellent cutting performance of diamond drill bits rock, the diamond bit can drill at high speed and enlarge the drilling depth to a certain extent when being selected as oil drilling tool. In the process of drilling oil with diamond bit, the following aspects need to be paid attention to:

First, the price of diamond bit is relatively high, so we should operate it carefully to reduce the damage degree;

Secondly, the diamond bit has some defects in thermal stability, so the cooling performance and cleaning condition of the bit should be guaranteed when it is used;

Thirdly, its texture is relatively brittle, so the impact resistance of the diamond bit will be relatively poor, so we should strictly follow the relevant rules of the diamond bit to carry out strict and standardized operation.

When selecting oil drilling bits it is necessary to select the bit according to the actual situation of the drilling equipment, the actual conditions of the formation, the geological data of the adjacent oil wells and the formation data. During the selection, the following issues need to be considered:

First of all, we need consider whether there is soft and hard interlacing in the drilling formation;

Secondly, it should consider whether anti deviation drilling and curve operation are needed in the oil drilling work;

Thirdly, the actual depth of different drilling sections in the same well should be considered;

Finally, drilling geology, formation abradability and hardness should be considered.

Now the oil drill bit cost is reasonable, if you have needs, please contact us.

As a rock drill bit supplier, we can offer sorts of related products for sale, if you have needs, please contact us.

Focus on drilling bits for 20 years.

Among all the drill bit manufacturers in China, Great Drill Bits is famous for its specialty and service quality.

Excellent Feedback from customers:  More than 20 Engineers & 100 senior technical & 50 sales and services team.
