When it comes to drilling operations, efficiency and effectiveness are of paramount importance. In the quest to optimize drilling performance, the industry has witnessed significant advancements over time. One such revolutionary innovation is the PDC drag bit. In this blog post, we will delve into the realm of PDC drag bits, exploring their different types and designs that have revolutionized drilling processes worldwide.

Understanding the PDC Drag Bit

PDC (Polycrystalline Diamond Compact) drag bits are cutting tools designed with a combination of synthetic diamond and tungsten carbide materials. This amalgamation of high-quality components grants PDC drag bits their exceptional hardness, wear resistance, and heat resistance properties.

Types of Drag Bits

Step-Type Drag Bits

Step-type drag bits incorporate a unique stepped profile on the bit face. This design facilitates self-cleaning, preventing the accumulation of debris and clay between the cutters. With enhanced cooling and cleaning capabilities, step-type drag bits are ideal for drilling in highly cohesive formations where clogging is a common issue.

Solid-Type Drag Bits

Solid-type drag bits feature a firmer build compared to other types, making them particularly suitable for drilling through harder formations such as limestone, granite, or hard shale. The reliable and robust construction of solid-type drag bits ensures a longer lifespan and enables the efficient penetration of tough materials.

Innovations in PDC Drag Bit Design

Advanced Cutter Placement

PDC drag bits have seen substantial improvements in cutter placement, resulting in enhanced cutting efficiency and superior stability. The arrangement of PDC cutters at optimum angles can allow for improved steerability while maintaining a consistent drilling direction, even in challenging formations.

Wear Resistance Coatings

To tackle the challenges of abrasion and extended tool life, manufacturers have introduced wear-resistant coatings on PDC drag bits. These coatings provide an additional layer of protection against wear and tear, reducing the need for frequent maintenance and enhancing the overall durability of the bit.

Benefits of PDC Drag Bits

Increased Drilling Speed

The exceptional cutting efficiency of PDC drag bits significantly boosts the drilling speed, reducing operational time and costs. This advantage stems from their ability to shear and dislodge materials effectively, providing an uninterrupted drilling process.

Versatility Across Formations

PDC drag bits exhibit versatility while operating across various formation types. Whether drilling through soft sediments or challenging rock formations, PDC drag bits’ adaptability contributes to their widespread usage in different geological environments.

Improved Durability

With their robust construction, PDC drag bits are built to withstand extreme drilling conditions and prolong their lifespan. This durability, combined with the potential for maintenance and reconditioning, offers favorable cost-saving options for drilling projects.

PDC drag bits have undeniably revolutionized the drilling industry by offering enhanced efficiency, versatility, and durability. Their various types and designs cater to different formation challenges, ensuring optimal performance with reduced downtime. As drilling operations continue to advance, the versatility and innovation exhibited by PDC drag bits aim to pave the way for more efficient and cost-effective drilling practices.

Great Drill Bits is a drill bit manufacturer, we have drill bit china for sale, rock drill bit, drill bit that makes big holes and etc. Welcome to know more about us.

Three Blade Wings Drag Rock Drill Bit For soft formations

Overview of Drag Bit

pdc drag bit are manufactured from forged high-quality alloy steel and hard alloy, plus state of art welding technology and multiple precision heat treatment to provide the highest penetration rate and longest lifespan at the roughest condition.

A drag bit is usually designed for soft formations such as sand, clay or some soft rock. However, they will not work well in coarse gravel or hard rock formations. Uses include drilling water wells, mining, geothermal, environmental and exploration drilling. Whenever possible, they should be used to drill pilot holes because they produce cuttings that are easiest to log.

Three-wing bits tend to drill faster, whereas four-wing bit drilling are longer-lasting, more durable, and drill a straighter hole

The Advantage of wing drill bit

The blade system allows you to replace worn or damaged individual blades rather than the entire bit. The cost of purchasing multiple blade types and sizes is much lower than the unit. Prepare a variety of blades to ensure your time on site is most effective. The drag bits for water well drilling is suitable for the formation with low hardness and high plasticity.

From 3 7/8″ three-step bits to 6 1/4″ four-step bits to the various sized chevron bits, this replaceable blade system offers high-quality carbide-tipped wings that weld onto your pipe or threads are cost-effective and versatile.

GREAT also produces and sells various drill bits for oil fields, mines, geological surveys, hydrology exploration, engineering piling, geothermal development, Wells and other applications. At the same time, we will provide specific solutions according to customer requirements and actual drilling conditions

For more about types of drag bitstypes of drag bits.

As a professional china drill bits manufacturers, Cangzhou Great Drill Bits Co.,Ltd. has high-quality drill bit for sale. Welcome to contact us if needed.

Well Drilling Equipment Crocodile PDC Reamer for Horizontal Drilling

Overview PDC Reamer

The PDC Reamer manufactured by GREAT drill bit will be your best choice to deal with the complicated situation. Our PDC reamer brand is Crocodile.

No matter be drilling or after finish drilling, no matter what kind of formation, the“Crocodile PDC-reamer” will give you reliable, efficient drilling experience, it can increase drilling efficiency, make a more better-quality wellbore. What more, the “Crocodile PDC-reamer can prevent pipe sticking, reduce probability or malfunction.

During the drilling operation, we may have met some complicated formation, just like limestone, sticking salt and so on, the drilling stem almost be contorted like a curve of sine as the depth added. You will get a poor quality wellbore, it will be a huge challenge for tubular running. What more, reduce efficiency and need more cost.

The Details of PDC Reamer for Sale

What is the Crocodile PDC-R eamer:

Like a stabilizer;

Reduce probability or pipe-sticking;

Increase drilling efficiency;

Reduce cost;

Suit for MWD and another high-tech tool;

High-quality borehole;

Effective work with lower torque.

The Advantage of PDC Reamer for Sale

The body of “Crocodile PDC-reamer” comprised of high-quality steel or non-magnet material, it’s so reliable that it can meet all kinds of challenges. The non-magnet material suit for MWD and another high-tech tool, it can give you unprecedented operation efficient. Compare the stabilizer or conventional reamer, the carbide inserts arrangement on the blades was design by the “equal density” principle, it can effectively cut the wall of a hole. All the carbide inserts exposed in the mudflow, it can take enough cooling and lubrication. So, the wear and tear of inserts are more slowly, and also effective work at lower torque.

The special tapered surface design ensures that the cutter is exposed to the drilling fluid. Therefore, this can clean the certification and extend its life, increase fluid flow and avoid drill bits.

As a professional drill bit manufacturers in china, Great Drill Bits has high-quality drill bit for sale. Welcome to contact us if needed.

Bi-center bit for Mining Machinery and abrasive formation

Overview of Bi center Bit

This type of bi center drill bit mainly used for medium to medium-hard compressive and abrasive formation, it has medium and high-density parabolic crown and heavy cutters density for the bit has good impact resistance and anti-abrasive, high wear-resistant diamond gauge, the bicenter drill bit has a longer service life.

In directional applications, bicenter bit performance usually presents performance challenges in terms of efficiency versus power availability and dynamic issues.

GREAT designed the bi-center bit to enlarge the wellbore diameter, to replace under reaming, to help control rouble zones and for expandable tubular.

Bi-center Bit Design

We designed this wholesale bi center drill bit with close attention to hydraulic optimization to improve chip removal and ensure effective tool cooling. In addition to the improved hydraulic configuration, the cutting configuration was carefully studied to ensure that it is both effective and balanced – not only on conventional components but also when used in combination with a bent-case motor. This design concept of bi center bits combined with GREAT’s wide range of PDC cutters grades and geometries results in a bi-center drill with excellent drilling performance.

Great Drill Bits is a rock drill bit factory, we have strongest drill bits for sale, rock drill bit, drill bit that makes big holes and etc. Welcome to know more about us.

Overview of Steel Tooth Bit

This superior method provides a stronger, more impact-resistant tooth than milling because the metal particle structure during forging is protected, resulting in stronger teeth. The details of Steel tooth Bit.

GREAT heat treatment process selectively carburizes the bearing wear surface to ensure the toughness of the structure. This provides long-lasting and reliable bearing performance.

Critical tooth hard-facing process is continually monitored and updated to ensure the highest quality hard facing deposit.

Steel tooth tricone drill bits are suitable for extremely soft formations with low compressive strength and high drillability such as clay, mudstone, chalk, etc. They are also suitable for medium strata with high compressive strength, such as soft shale, anhydrite, medium soft limestone, medium soft sandstone. Medium stratum with a hard interlayer.

The Advantage of Steel Tooth Bits

The optimized tooth structure makes the wear-resistant alloy of the tooth surface and the tooth top weld thicker and more aggressive, effectively improving the wear resistance of the tooth and greatly increasing the mechanical drilling speed.

Using a new welding process, a new welding material is used on the inner and outer teeth surfaces of this tricone rock bit so as to make the drill bit teeth more wear-resistant.

Steel tooth bits are rubber sealed for durability and reliability.

Cangzhou Great Drill Bits Co.,Ltd. is a drill bit manufacturer, we have china drill bits for sale, rock drill bit, mill tooth drill bit, drill bit with teeth, milled tooth drill bit, mill tooth bit and etc. For more information, please feel free to contact us!

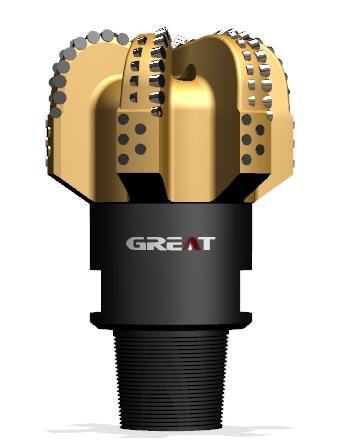

The Steel body PDC bit body is made of AISI 4145H round steel. The cost of Steel body PDC bit is lower than that of Matrix body PDC bit.

Every Steel body bit shall have heat treatment, to improve the mechanical properties of steel, to eliminate residual stress and improve the cutting performance. Each blade surface shall be welded with hardened material to increase wear resistance and erosion resistance.

Steel Body PDC Bit For sale

Most of our raw material is made in the USA and France. Our supplier technical engineers come to our factory training our welder and have a meeting to show their new products regularly. We communicate with our supplier very well and are very happy. So if our customers need, we can ask our engineer to have a meeting with each other face to face. And Every bit has its own tracking card and serial number. For any of our bits shipment to the field, you can provide the serial number, then we will check what kind of cutters we use in the steel body PDC bit and what about the design. Then we can make an optimized design very fast.

Why Choose Great Steel Body PDC Bits

As professional pdc drill bits manufacturers in China, our Steel body pdc drill bits can be customized for mining, oil well, water well, explorer well drilling.

A lot of people changing their minds to use oem steel body pdc bits. Because GREAT has new technology hard facing material and sleeve to prevent washout the nozzles. so it is also widely used for Oil&Gas well drilling and water well drilling.

Bit diameters range from 3″ to 36″ with a variety of cutters and optional back-out cutters as well as various blade counts.

we can also make several design changes according to the customer’s feedback, and finally, ensure the customer’s excellent drilling effect.

Matrix VS Steel Body PDC Bits

In terms of the metallurgical properties of the two materials, steel and matrix are the exact opposite of each other. The tungsten carbide particles in the matrix are metallurgically bonded to form a hard and brittle composite material that is more wear-resistant than steel and is preferred for high solids content drilling muds. Steel, on the other hand, is ductile, tough, and well able to withstand greater impact loads.

Steel body PDC bits are milled from billet steel for a stronger, tougher construction. While steel body PDC bits are easier to manufacture, the production of matrix PDC drill bits is a rather time consuming process.

Although matrix and steel body bits perform the same task, that is drilling, the difference in their structural capabilities results in different bit geometries. The main factors affecting the design of steel body PDC bits and matrix body bits are mechanical design parameters, hydraulic conditions and the properties of the rock being grilled.

Steel Body PDC Bits Design

GREAT, one of the most trusted pdc bit manufacturers, protects exposed parts of the drill from wear and erosion by hardfacing and coating with a dedicated design.

There are many drill bit suppliers, but we are one of the best choices for you.

What is core barrel Roller Bit？

A core barrel is a specialized tool used in drilling to extract a cylindrical sample of rock, soil, or ice from the Earth or other surfaces. It is primarily used in the exploration for mineral and geological resources, including oil and gas, minerals, and groundwater, as well as for environmental and geotechnical studies. Roller bit core barrel come in various sizes and designs, including double-tube and triple-tube configurations, to suit different drilling conditions and core sampling requirements. The roller bit core barrel produced by GREAT drill bits factory uses high carbon steel and a special bit Angle to maintain drilling strength and efficiency.

Types of wholesale roller bit core barrel

Core barrel with bullet teeth is used for cutting an annular ring in rock or concrete(also reinforced concrete).

Core Barrel with roller bits is used in very strong rock formations(compressive strength >100Mpa).

Cross cutter core barrel is mainly used to break rock cores that remain in the borehole after using a core barrel, also suitable for drilling hard, jointed rock(<100Mpa) and for penetrating through layers containing boulders.

Applicable layers: dense sand, gravel, and medium hard rocks, etc..

The Advantage of Core Barrel Roller Bit

The reaming bit consists mainly of four or more cones. The main cutting teeth are new wear-resistant alloys for tungsten carbide inserts and steel teeth. The new formula and the new process of high-quality tungsten carbide teeth improve the service life of the reaming drill. The guide is a cone drill bit or a scraper drill bit.

The bearing seal uses high-performance O-ring seal or metal seal bearing and special grease for imported drill bit.

Special inserts are placed on the outer diameter of the head to reduce the wear of the head during the formation of abrasives in directional and horizontal wells, prolonging the life of the drill.

Replacing Cutters and Cutting Cost-On most Hole Opener designs, the cutters can be easily replaced. The cost to replace a cutter is a fraction of the cost to replace a large barrel drill bit.

There are many drill bit companies, but we are one of the best choices for you.

GREAT has customized manufacture several types of roller bit. Our roller cone drill bit includes the 90 ° U-shaped Roller Bit series and the 120 ° U-shaped Roller Bit series. All these two types have designed Starry Sky Roller Bit.

The cones are designed with more full insert than the traditional tricone bit cutter.

Roller Cone Bits For Sale

90 ° U-shaped Roller Bit

Overview Roller bitGREAT has customized manufacture several types of roller bit . It is including 90 ° U-shaped Roller Bit, 120 ° U-shaped Roller Bit and Starry Sky Roller Bit.The 90 ° U-shaped Rol…

120 ° U-shaped Roller Bit

Overview 120 ° U-shaped Roller bitGREAT has customized manufacture several types of roller bit . The traditional roller bit was cut by tricone bit . So it is including No.1 ,No.2, No.3 Cone cutters ….

Starry Sky Roller Bit

Overview Starry Sky Roller BitGREAT has customized manufacture 90 ° U-shaped Roller Bit, 120 ° U-shaped Roller Bit and Starry Sky Roller Bit.The Roller bit mainly used for Rock reamer (Hole opener) …

1. 90 ° U-shaped Roller Bit is straight legs of tricone bit, it is a special model made by GREAT.

But also we have designed roller bit with foundation, it can replaceable the roller bit, in this case, you will not worry welding on the rock reamers. High precision bearing surface heat treatment adopts advanced heat treatment technology to improve bearing capacity and service life.

2.120 ° U-shaped Roller bit. The traditional roller bit was cut by tricone bit.

So it is including No.1, No.2, No.3 Cone cutters.

The Roller bit mainly used for Rock reamer (Hole opener) For HDD (Horizontal directional drilling ) Trenchless technology. But also used for Core barrel with roller bit, like pile foundation project.

3. Full cutter layout (Starry Sky Roller Bit), fast assembly way of bit leg avoid heating problem of soldering, which extend lifetime of bearing.

Replaceable cutter rock reamer is designed for big rig and big hole drilling, fit for all sorts of rock formation.

High precision bearing surface heat treatment adopts advanced heat treatment technology to improve bearing bearing capacity and service life.

The Starry Sky Roller Bit has 90 ° U-shaped Roller Bit and 120 ° U-shaped Roller Bit.

The cone units of Great Roller Cone Cutters are replaceable and each main body of the Hole Openers can be used many times,thus saving the cost for the customer.

The strength and wear resistance of inserts are improved by using carbide inserts with high strength and high wear resistance.

We also provided OEM service if you have your own design and NDA with the contract.

Just feel free to tell me if you have any needs.

Roller cone bit design

Roller Bit Application

Mining Industry

GREAT 3 blade PDC bit is very popular in mining industry.

Geothermal Well

Geothermal well are become more and more popular, so choose a right bits is much more important.

Cangzhou Great Drill Bits Co.,Ltd. is a roller bit factory, we have best drill bit for rock for sale, rock drill bit, , china roller bit , drill bit roller cone and etc. Want to know roller cone bit types.

There are many oil and gas drill bit manufacturers, but we are one of the best choices for you.

Overview of Rock Reamer Hole Opener

The Rock reamer produced by GREAT company is used to expand the diameter of the pilot hole and is mainly used for horizontal directional drilling of oil, natural gas, electric power, and other pipelines. The HDD Rock reamer is designed for reaming a variety of rock formations in the ground. We can design and manufacture the rock reamers size from 10” to 72” .

The cutting teeth of the cone use TCI cutters or Steel tooth cutters. And the teeth have good wear resistance and the speed of the drill is fast. Intensive palm tip welding and full palm back protection, the cones are divided into back dimension and the diameter is protected by a protective design to effectively enhance the resistance of the drill bit.

We have our patent cutters for hdd rock reamers.

Apply wear-resistant alloy or carbide tooth on the front stiffener or block surface. In order to reduce the weight of the rock reamer hole opener without affecting the support strength, the front centralization plate adopts a hollow design.

We can first design acccording to the project requests and confirmed drawings before production, stirctly quality control in production, Final inspection before shipping .

If you have any coming HDD projects , just feel free to contact with me.

The Advantage of Rock Reamer & Hole Opener

The hole opener produced by GREAT is a low-torque reamer that can be reamed with a small rig to reduce drilling costs.

The cone unit on the GREAT hole opener also can be replaced, and a set of bodies can be used multiple times, saving engineering costs for customers.

The production of large-size tricone bit or multi-cone drill bits is not only difficult to process but also extremely costly.

The use of GREAT rock reamer can solve these problems, and manufacturers can produce various sizes of hole openers according to customer requirements.

We are one of the biggest Rock reamer manufacturing companies in Asia, and is qualifed as suppler for CNPC, Sinopec and CNOOC.

Great Drill Bits is a oil and gas drill bit manufacturers, we have best drill bit for rock for sale, rock drill bit, hole reamer bit, directional drill reamers, drill bits and reamers, under reamers hole openers, roller reamer drilling and etc. Welcome to know more about us.

Overview RC Drill Bit

RC PDC drill bit from GREAT are manufactured from AISI 4145H heat-treated steel. Reverse circulation drill bit are widely used in geological exploration samples, oil wells, mining, and other fields. The reverse circulation drilling method combined with RC drill bit and hammer is the preferred drilling method for initial exploration, ore body development, and other exploration drilling. By completing the drilling project objectives within the budget, reverse circulation drilling with RC bit provides a more cost-effective drilling method.

The Details of RC Drill Bit

The Specification of RC Drill Bit

Reaming Size	12 1/4″	Nozzle Qty	3NZ
Pass Thru Size	10 1/2″	Gauge Length	2.5″
Blade	5	Connection	6 5/8″ API REG
Primary Cutter Size	16mm	Make up Torque(kN.m)	51.7~56.9
Rotary Speed(rpm)	60~260	Weight on Bit(KN)	30~260
Max.WOB(KN)	180	Flow Rate(lps)	35~70

The Advantage of RC Drill Bit

The raw material of GREAT’s RC diamond PDC bit is heat-treated steel and has a strict inspection tracking report.

Unlike the traditional center flush circulation, our Reverse Circulation PDC Bits save a lot of fuel and other operating-related costs.

Reverse circulation drilling can obtain preliminary geological data before analyzing cuttings samples and investing in detailed geological data for exploration coring plans. Reverse circulation is also faster than coring, which means drilling more holes.

We design RC PDC drill bit according to customer requirements and formation conditions. As one of the most trusted drill bit manufacturers in China, GREAT has professional staff and precise equipment to get the best drill bits for customers.

Using our drill bits can help you increase efficiency and maximize your operations, and we have comprehensive after-sales service and technical support.

Reverse Circulation Drill Bits Price

Reverse Circulation Drill Bits price varies based on material and type. The cost of the reverse circulation drill bit （rc drill bit）is an important part of the equipment in order to increase efficiency and quality of use, which is why you cannot compromise on their quality. All reverse circulation bits are submitted to strict quality control by GREAT to ensure that you always get maximum satisfaction. Contact us to get a quotation on a custom rc bit.

Production Process of Reverse Circulation Drill Bit

Milling Junk SlotProduction Process of Reverse Circulation Drill BitMilling RC Bit NozzlesProduction Process of Reverse Circulation Drill BitHard Facing

Milling Junk Slot

Milling RC Bit Nozzles

Hard Facing

Checking RC Bit PocketsProduction Process of Reverse Circulation Drill BitBrazing RC Bit CuttersProduction Process of Reverse Circulation Drill BitCalibration The Gauge

Checking RC Bit Pockets

Brazing RC Bit Cutters

Calibration The Gauge
