How Does a Tricone Drill Bit Work?

The insert tricone roller bit is under the effect of the weight on bit and the rotation of the drill string. After the teeth are crushed, they also eat into the rock, and at the same time, there is a corresponding sliding to shear the rock.

In oil drilling, the roller cone drill bit can adapt to the drilling of various formations and is one of the main rock breaking tools. The movement of the toothed tricone roller bit at the bottom of the well determines the movement of the cones and the teeth, which directly determines the crushing effect of the teeth on the formation rock.

Therefore, before understanding how the drill bit works to break rock, it is important to understand the movement of the drill bit at the bottom of the hole. The motion state and stress state of the roller cone bit when it works at the bottom of the hole are quite complicated.

A lot of work has been done on the working principle of the roller cone bit, whether in theoretical or experimental research, and these research results provide the basis for the design and use of the bit.

Ⅰ. Analysis of the working principle of the insert three-cone bit

1. The revolution of the drill bit: The movement of the drill bit cone rotating in a clockwise direction around the axis of the drill bit is referred to as the revolution of the drill bit. The speed at which the drill bit revolves is the rotation speed of the turntable or the downhole power drilling tool.

When the drill bit revolves, the cone rotates around the axis of the drill bit. The linear speed of each row of teeth on the cone rotating around the axis of the drill bit is different, and the linear speed of the outer teeth is larger.

2. Rotation of the drill bit: When the drill bit rotates, looking in the direction from the bottom plane of the cone to the tip of the cone, the counterclockwise rotation of the cone bit around its own axis is called rotation.

The rotation of the cones is the result of the reaction of the rock to the crushing action of the teeth.

3. Factors affecting the rotation speed of the cone: revolution speed, bit structure, tooth surface structure, drilling parameters and rock properties, etc.

In general, the rotation speed of the roller cone is faster than the revolution speed of the roller cone bit. The ratio of the rotation speed of the cone to the revolution speed of the drill bit is called the wheel-to-head ratio, and the value of the wheel-to-head ratio is generally between 1–1.5.

Compared with the general mechanical sliding bearing, the sliding bearing system of the insert tricone roller bit has special characteristics in the bearing structure, the load it bears, the working environment of the bearing and the relative speed between the sliding pairs.

The radial circular runout at the drill tip should be within 0.02mm after the tool of the insert tricone bit is clamped. For the machining method of workpiece rotation, the deviation between the workpiece rotation center and the tool center line should be within 0.02mm.

The tool holder overhang should be as short as possible to enhance its mounting rigidity. The cutting fluid should be selected reasonably to reduce the friction and heat dissipation conditions during drilling.

Drilling is generally used for rough machining. The main function of cutting fluid is to improve the life of the drill bit, that is, to have better cooling performance. Usually, emulsified oil aqueous solution is used, which has large heat capacity, high thermal conductivity and good cooling performance.

If the drilling roughness and accuracy are required, the three-cone drill bit should use the cutting oil mainly for lubrication. For example, when machining aluminum alloy workpieces, it is appropriate to use the mixed oil of engine oil and kerosene.

When it rolls at the bottom of the well, the teeth on it will sequentially impact and press into the formation, and this effect can crush a part of the rock at the bottom of the well.

At the same time, relying on the sliding of the tricone drill bit makes the shearing effect weaken the remaining rocks between the teeth, so that all the rocks at the bottom of the well are broken and the wellbore can be extended.

If you want to know more types of china rock drill, please visit our website.

Focus on drilling bits for 20 years.

Among all the drill bit manufacturers in China, Cangzhou Great Drill Bits Co.,Ltd. is famous for its specialty and service quality.

Excellent Feedback from customers:  More than 20 Engineers & 100 senior technical & 50 sales and services team.

PDC rock drill bit, as a star product in modern drilling field, has been warmly sought after by the market for its excellent performance and wide applicability. Behind this, the market competitiveness of PDC rock drill bit manufacturers plays a decisive role. In this paper, we will analyze the market competitiveness of PDC rock drill bit manufacturers from various angles.

Technological Innovation Ability

Technological innovation ability is one of the core competitiveness of PDC rock drill bit manufacturers. With the continuous progress of science and technology, the performance requirements of drilling bits in the field of drilling are also increasing, and PDC rock drill bit companies need to follow the market trend, constantly carry out technological innovation, and improve the performance and quality of their products. For example, advanced material technology, precise manufacturing process and intelligent production process are adopted to enhance the wear resistance, impact resistance and drilling efficiency of PDC drill bits. At the same time, we explore new application areas and technology routes through continuous R&D investment to maintain our leading position in the pdc drill bits market.

Product Quality And Reliability

The product quality and reliability of PDC rock drill bit manufacturers are directly related to their market competitiveness. High-quality PDC drill bits can maintain stable performance under complex geological conditions, reduce failure rate and improve drilling efficiency. Therefore, PDC rock drill bit manufacturers need to strictly control product quality, and strive for excellence in all aspects from raw material procurement, manufacturing to quality testing. At the same time, establish a perfect quality management system and after-sales service system to solve the problems encountered by customers in the process of use in a timely manner and improve customer satisfaction.

Brand Influence And Market Channels

Brand influence is an important advantage for PDC rock drill bit manufacturers in the market competition. Famous brand often attracts more customer attention and trust, and increase market share. PDC rock drill bit manufacturers need to focus on brand building, through advertising, exhibitions, industry conferences and other ways to improve brand awareness and reputation. At the same time, actively develop market channels, establish long-term and stable cooperative relationships with domestic and foreign customers to expand market share.

In addition to the above three aspects, PDC rock drill bit manufacturers also need to pay attention to changes in market demand and competitive situation, and timely adjust the market strategy and product strategy. For example, launching customized PDC drill bit products for different customer groups and application areas; formulating effective competitive strategies for competitors’ strengths and weaknesses, etc.

To summarize, the market competitiveness of PDC rock drill bit manufacturers is affected by several factors. Only by continuously improving technical innovation ability, ensuring product quality and reliability, strengthening brand building and market channel development, etc., can they be invincible in the fierce market competition.

Focus on drilling bits for 20 years.

Among all the drill bit manufacturers in China, Great Drill Bits is famous for its specialty and service quality.

Excellent Feedback from customers:  More than 20 Engineers & 100 senior technical & 50 sales and services team.

A Brief Introduction to Cone Drill Bit

In oil drilling and geological drilling, the cone drill bit is the most widely used. When the bit rotates, it can impact, crush and shear the stratum rock. Therefore, cone drill bit can adapt to soft, medium and hard strata. Especially after the emergence of jet type cone drill bit and long nozzle cone drill bit, the drilling speed of the bit has been greatly improved, which is a major revolution in the development history of the bit.

According to the type of teeth, cone drill bit can be divided into milling (steel teeth) cone drill bits and insert (carbide teeth inlaid on the cone) cone bits for drilling. According to the number of cone, it can be divided into single cone drill bit, tricone drill bit and assembled multi cone drill bit. The tricone drill bit is the most widely and commonly used. The cone suppliers shall pay attention to whether the quality inspection is qualified when selling the cone drill bit.

Tricone drill bit is an important tool in oil drilling. Its performance will directly affect the quality, efficiency and cost of drilling. The effective way to reduce drilling cost is to increase the mechanical drilling speed and service life of bit. It has been proved by some data that the improvement of drilling rate has more influence on reducing drilling cost than the improvement of bit service life. The improvement of bit cutting structure is the most direct way to improve the mechanical drilling rate.

For a long time, the improvement of the cutting structure has focused on the main cutting tooth structure. For example, in the structure of cemented carbide teeth, people have invented wedge teeth, spoon-shaped teeth, partial top spoon-shaped teeth and equal wear tooth, etc. It is gradually recognized that the diameter maintaining structure also has a great impact on the bit mechanical drilling speed and service life. In particular, the bit used in highly deviated wells and horizontal wells requires a reasonable diameter maintaining structure. Many new types of diameter maintaining structures have been developed and applied to cone drill bits with good results.

Cangzhou Great Drill Bits Co.,Ltd. has roller cone bits for sale, and out quality and service is trustworthy. Welcome to know more about us and purchase our products.

As one of oil well drill bit manufacturers, we will do our best to meet all the needs of customers.

Overview of PDC Hole Opener

PDC Hole opener is designed for the enlargement of pilot holes and large hole applications. They are also used for road and river crossing applications.

The hole opener is made of AISI 4145H fully heat-treated alloy steel. All products have carbide grinding teeth and inserting tools. Body and cutters are hard-faced in three different designs with different conditions and rock formations. We also can design of the PDC hole opener blade allows replaced in the field.

We offer innovative drilling technology to mitigate drill string vibration during reaming. GREAT hole opener solution can help you solve your challenges, whether you use a rotary steerable drill combination, a rotary motor drill combination, or a traditional rotary drilling system. Our reaming tools operate at high efficiency, increase equivalent cycle density (ECD), reduce the risk of fractured formations, reduce torque and drag, and overcome drilling challenges.

The Advantage of drill bit opener

The body is machined out of a single block of heat-treated AISI 4145H alloy steel.

Compared to the roller hole opener, the hole opener drill bits performs better during the drilling process. The post-maintenance process is much simpler, just replace the PDC cutter, which can reduce the production cost later.

Depending on the formation and the customer’s special requirements, different sizes of PDC hole openers can be produced.

Cangzhou Great Drill Bits Co.,Ltd. is a drill bit manufacturers in china, we have drill bit china for sale, rock drill bit, drill bit that makes big holes and etc. Welcome to know more about us.

Overview of PDC Cutters

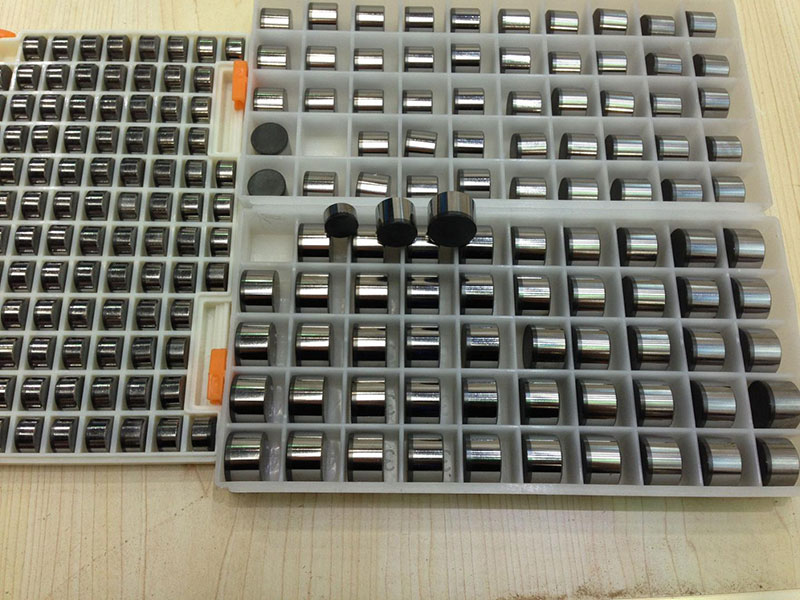

PDC cutters are made of diamond micro-powder and cemented carbide substrate sintered under ultra-high pressure and high temperature. It has high hardness, high wear resistance and thermal conductivity of diamond, and has the strength and impact toughness of cemented carbide. PDC cutters are widely used in oil well field PDC bit, geological PDC exploration bits, gas exploration bits, coal mining drilling applications. Various used for PDC bit, PDC core bit, and PDC hole opener, PDC reamer. PDC cutters’ performance has a decisive influence on the drilling effect and life of PDC bit.
