The tricone roller bit performs a lot of oil drilling work every day, so it is very susceptible to wear. Many construction units pay little attention to its maintenance, resulting in a very high scrap rate and often need to be replaced. But in fact, as long as the tricone roller bit is used properly, it can effectively extend its service life, thereby saving costs for the construction unit. Here are some tips for using tricone roller bit to reduce wear and extend service life.
Ⅰ. Use skills of tricone roller bit
If we can see that the pump pressure is rising through the equipment displaying, but the tricone roller bit does not have a rear footage, increase the drilling pressure appropriately, and increase the speed and torque. If there is no problem with the display equipment, it is generally because the drill bit has a problem, being worn or aged, and the rock formation may be too hard. If there is no problem with the equipment, you can check whether the drill bit is passivated by tripping.
When applying the drilling pressure to the tricone roller bit, it needs to be adjusted appropriately. Do not press too much. This will only increase the wear rate of the drill bit. It needs to be gradually and smoothly drilled. The drilling pressure can be seen on the footage table bit by bit. When drilling stops, you need to lift the cone bit from the interface of the drill to keep the distance to ensure that the drill operate stably next time.
The tricone roller bit is mainly used in oil drilling. This product can improve the efficiency of oil drilling and save the cost of drilling to a large extent. The tricone roller bit is an important mining tool in the oil drilling industry. It is mainly used in a relatively wide stratum environment. This product has a strong horsepower supply and a high rotation rate. It can extract rocks and improve the efficiency of oil wells.
Among the industrial applications of tricone roller bit, it mainly focuses on many drilling technologies in the oil drilling industry and underground environments.
Ⅱ. Features of tricone roller bit
1. The tricone roller bit adopts a floating bearing structure. The floating element is made of new materials with high strength, high elasticity, high temperature resistance and high wear resistance. The surface is treated with solid lubricant. While reducing the relative linear velocity of the bearing pair, it also reduces the temperature rise of the friction surface, which can effectively improve the bearing life and bearing reliability under high drilling pressure or high speed drilling conditions.
2. The tricone roller bit adopts high-precision metal seal. The metal seal consists of a pair of carefully designed and processed metal seal rings as the axial dynamic seal of the bearing. Two highly elastic rubber energy supply rings are respectively located in the seal area of the tooth palm and the cone as static seals. The optimized seal compression ensures both the metal ring sealing surfaces always keep good contact.
3. The steel ball locks the cone to adapt to high speed.
4. The tricone roller bit adopts an all-rubber oil storage bag that can limit the pressure difference and prevent the drilling fluid from entering the lubrication system, which provides a good lubrication guarantee for the bearing system.
5. The tricone roller bit adopts a new type of grease that can withstand high temperatures of 250°C and is resistant to wear.
6.The insert bit adopts high-strength and high-toughness cemented carbide teeth. The optimized design of the number of teeth, the number of teeth, the height of the teeth and the alloy teeth profile of the drill bit, give full play to the high wear resistance and excellent cutting ability of the insert bit. The tooth surface of the steel tooth bit is welded with a new wear-resistant material, which improves the life of the cutting tooth of the tricone roller bit while maintaining the high mechanical drilling speed of the steel tooth bit.
Great Drill Bits is a drill bit manufacturer, we have best drill bit for rock for sale, rock drill bit, drill bit that makes big holes and etc. Welcome to know more about us.
The tricone produced and processed by the tricone bit manufacturer is mainly used in oil drilling. This product can improve the efficiency of oil drilling and at the same time save the cost of drilling to a large extent. Tri-cone is an important mining tool in the oil drilling industry. It is mainly used in a relatively wide stratum environment. This product has a strong horsepower supply and a high rotation rate. It can extract rocks and improve the efficiency of oil wells.
Ⅰ. Precautions for using tricone bit
1. The drill bit of the tricone bit should be kept clean at all times, and the mined mud should be surveyed in advance;
2. Pay attention to the fixing of the gear when installing and uninstalling the tricone bit. The drill bit must not be loose at all, otherwise it will affect the service life of the product;
3. In the process of using tricone bit for oil well production, the frequency of the drilling speed should be controlled, so that the resistance of the rock can be alleviated, and the drill bit will not damage;
4. In the process of using tricone roller bit, the water volume of the water pump should be kept sufficient at all times to provide a good power supply for the drill bit.
Ⅱ. How to maintain and protect tricone bit?
1. When it is drilling steel parts, please ensure sufficient cooling and use metal cutting fluid.
2. Good drill pipe rigidity and rail clearance can improve the accuracy of drilling and the life of the tricone bit.
3. Please ensure that the magnetic base and the workpiece are level and clean.
4. When drilling thin plates, reinforce the workpiece, and when drilling large workpieces, please ensure the stability of the workpiece.
5. At the beginning and end of drilling, the feed rate should be reduced by 1/3.
6. For materials that have a large amount of fine powder during drilling, such as cast iron, cast copper, it is possible to use compressed air to help chip removal without using coolant.
7.Please clean up the iron filings wound on the drill body in time to ensure smooth chip removal.
The precautions for using tricone bit are as follows:
1. Tricone bit operates in different rock formations, and chooses different types of drill bits, axial pressure and speed according to the softness and hardness of the lithology.
2. When drilling rigs, follow the principle of matching the three elements of the drilling (wind pressure, axial pressure, and speed) with the parameters recommended by the drill bit sample.
3. Please check the appearance of each part of the tricone bit before going down the well, verify that the end face of the drill bit thread is consistent with the factory number on the drill bit packing box and certificate; check whether there is a trademark on the surface of the drill bit tooth palm to prevent counterfeiting.
4. The tricone bit should be reasonably stored on the drill to prevent dust and other debris from entering the drill bit.
5. When replacing the tricone bit, make sure that there is no dust inside the drill, the air outlet is unobstructed, the thread is greased, and the drill bit can be used after connecting the drill bit by lifting and rotating coordination.
6. Before changing to a new tricone bit, carefully check whether the three cones rotate flexibly, and whether the threads and teeth are intact.
7. When the new tricone bit is working, it must be used at low axial pressure and low speed for 20-30 minutes, and then gradually increase to normal axial pressure.
8. When opening a new tricone bit, pay attention to the debris around the hole (rocks, scrap metal, etc.), while rotating, ventilate and slow down, close to the surface, to prevent sudden drilling and impact damage to the bit.
9. When the tricone bit is working in soft rock formations and the drill bit is changed midway, it is necessary to strictly check whether the alloy teeth on the carrier back of the old drill bit and the cone have fallen off to the bottom of the hole. If there is any residue of the old bit in the hole, it is strictly forbidden to use a new drill bit in the hole.
10. When the drilling rig is stopped, the drilling tool cannot be placed in the hole with water to prevent the slag and water from flowing back into the bearing and damaging the tricone bit.
11. When the tricone bit is working in rock cracks or rock cracks caused by blasting and in the mined area, reduce the axial pressure and speed to prevent the teeth from breaking.
12. When the tricone bit is in the hole, it is strictly prohibited to reverse it to prevent the tricone bit from falling into the well.
13. When the tricone bit is in the hole and the air compressor suddenly stops working, the slag can easily enter the drill bit. Therefore, it is strictly forbidden to rotate for a long time, causing the bearing to wear, the slag repeatedly broken (or stuck), and the bit wear accelerates.
14. During the normal perforation operation of the tricone bit, there should be no serious air leakage in the main air path of the air compressor to ensure sufficient air volume and air pressure to extend the service life of the drill bit.
15. The tricone bit stabilizer should be replaced regularly to ensure that the drill rod is stable and the drill bit works normally.
16. It is strictly forbidden to use curved drill rods for the tricone bit to avoid uneven force on the three palms of the drill bit and accelerate the damage of the bit.
17.The storage of tricone bit should be moisture-proof and ventilated. In the process of transportation, it is strictly prohibited to knock the cones and threads.
The tricone roller bit may not have been known to you before. It is a kind of drilling accessory and it has been used for many years. What kind of performance does the drill bit tool have when it is used?
1. When using a tri-cone bit for work
It is necessary to guide the drill bit to work in the correct drilling position. When drilling, it is necessary to make full use of cutting agents and pay attention to chip removal; according to certain standardized methods of manipulation and use, it can demonstrate important features and value in different industries. In a state of multi-directional compressive stress, the pores of the rock are reduced and the strength is increased. The upper part of the well section is generally loosely cemented and soft. When the chisel edge is drilled into the workpiece, it will form a concave ellipse, which will make the tricone roller bit swing in a manner similar to the pendulum movement.
2. When the tricone bit is drilling thin plates
When tricone bit is drilling thin plates, the workpiece needs to be reinforced. When it is drilling large workpieces, the stability of the workpiece must be ensured. When the tool is drilling steel parts, please ensure sufficient cooling and use metal cutting fluid. At the beginning and end of each drilling, its feed rate should be reduced by one third.
Good drill pipe rigidity and rail clearance can improve the accuracy of drilling and the life of the tricone bit. Please ensure that the product magnetic base and the workpiece are level and clean. For materials that have a large amount of fine powder during drilling, such as cast iron, cast copper, you can finish the chip removal through compressing the air without using coolant. Please clean up the iron filings wound on the drill body in time to ensure smooth chip evacuation.
At present, the oil cone bit market is no longer chaotic and has become standardized and orderly. The market competition is developing towards product differentiation, brand, and after-sales service competition. One of the two cornerstones of market competitiveness, the role of roller bit technical services will become more and more obvious.
Great Drill Bits is a drill bit manufacturer, we have strongest drill bits for sale, rock drill bit, drill bit that makes big holes and etc. Welcome to know more about us.
In oil drilling and geological drilling, the cone drill bit is the most widely used. When the bit rotates, it can impact, crush and shear the stratum rock. Therefore, cone drill bit can adapt to soft, medium and hard strata. Especially after the emergence of jet type cone drill bit and long nozzle cone drill bit, the drilling speed of the bit has been greatly improved, which is a major revolution in the development history of the bit.
According to the type of teeth, cone drill bit can be divided into milling (steel teeth) cone drill bits and insert (carbide teeth inlaid on the cone) cone drill bits. According to the number of cone, it can be divided into single cone drill bit, tricone drill bit and assembled multi cone drill bit. The tricone drill bit is the most widely and commonly used. The cone suppliers shall pay attention to whether the quality inspection is qualified when selling the cone drill bit.
Tricone drill bit is an important tool in oil drilling. Its performance will directly affect the quality, efficiency and cost of drilling. The effective way to reduce drilling cost is to increase the mechanical drilling speed and service life of bit. It has been proved by some data that the improvement of drilling rate has more influence on reducing drilling cost than the improvement of bit service life. The improvement of bit cutting structure is the most direct way to improve the mechanical drilling rate.
For a long time, the improvement of the cutting structure has focused on the main cutting tooth structure. For example, in the structure of cemented carbide teeth, people have invented wedge teeth, spoon-shaped teeth, partial top spoon-shaped teeth and equal wear tooth, etc. It is gradually recognized that the diameter maintaining structure also has a great impact on the bit mechanical drilling speed and service life. In particular, the bit used in highly deviated wells and horizontal wells requires a reasonable diameter maintaining structure. Many new types of diameter maintaining structures have been developed and applied to cone drill bits with good results.

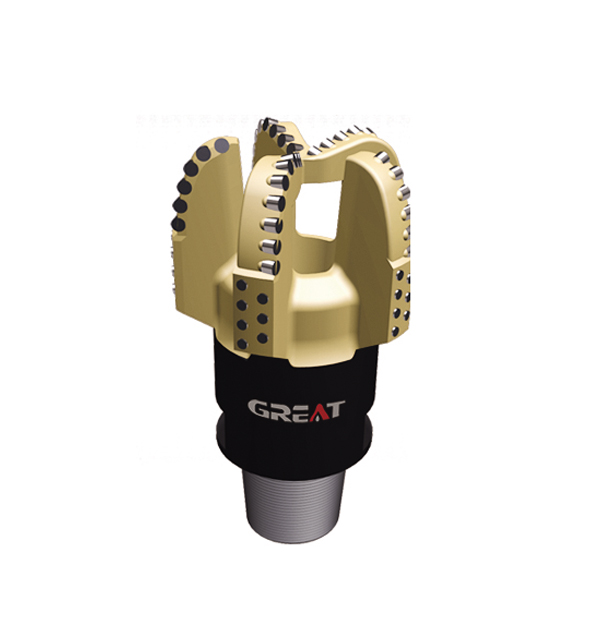

PDC bit is the abbreviation of Polycrystalline diamond compact bit, also known as Polycrystalline diamond cutting block bit or composite chip bit. Because of its advantages of fast drilling speed, long service life and high footage PDC bit is widely used in oil drilling.
1. Structure characteristics of PDC bit
PDC bit is composed of bit body, PDC cutting teeth and nozzle. According to different structure and manufacturing process, PDC bit is divided into two series: steel body and matrix body.
The whole bit body of rigid PDC bit is made of medium carbon steel and formed by machine manufacturing process. Drill holes on the working face of the bit, and fix PDC cutting teeth on the bit crown by pressing in and tight fitting. The crown of a drill bit is treated by surface hardening process (spraying tungsten carbide wear-resistant layer, carburizing, etc.) to enhance its erosion resistance. The main advantage of this kind of bit is simple manufacturing process, but the disadvantage is that the bit body is not erosion resistant and the cutting teeth are difficult to be fixed, so it is seldom used at present.
The upper part of PDC bit is made of steel and the lower part is made of WC wear-resistant alloy. The PDC bit is made by powder metallurgy sintering process. The PDC cutting teeth are welded on the preformed groove of the carcass with low-temperature solder. Tungsten carbide matrix has high hardness and erosion resistance, so the matrix PDC bit has long service life and high footage, which is widely used at present.
2. Working principle of PDC bit
PDC bit breaks rocks by cutting. The self-sharpening cutting teeth can easily cut into the formation under the action of WOB and move the shear rock forward under the action of torque. Many PDC cutting teeth work at the same time, there are many free faces of the bottom rock, and the rock is easy to be broken under the shear action, so the rock-breaking efficiency is high and the drilling speed is fast.
3. Correct use of PDC bit
Diamond PDC bit has the best effect in large homogeneous soft to medium-hard formation. It is not suitable for drilling gravel layer and soft hard cross formation.
Drilling with low WOB, high rotation speed and large displacement has a good effect.
Before the bit is put into the well, the bottom of the well shall be clean to ensure no metal falling.
When the bit is just put into the well, it should adopt small bit pressure and low rotation speed to run and resume normal drilling after the bottom of the well is formed.
PDC bit is an integral bit, without any moving parts, suitable for high-speed turbo drilling.
Great Drill Bits has roller cone bits for sale and sandstone drill bit for sale, and out quality and service is trustworthy. Welcome to know more about us and purchase our products.
Drilling work is a complex and diversified system engineering. In order to ensure the successful completion, coordination and cooperation of multiple systems are needed, among which the reasonable selection of bit is the prerequisite to ensure the high quality and efficient completion of drilling work. Nowadays, the most widely used bits in drilling engineering are roller bits and diamond composite bits (PDC). This paper analyzes the application of roller bits and PDC bits in drilling engineering.
1. Definition of roller bit and PDC
1.1 The roller bit is the most widely used drilling bit. When the bit is working, the cutting teeth alternately contact the bottom of the well, the rock breaking torque is small, the contact area between the cutting teeth and the bottom of the well is small, the specific pressure is high, and it is easy to dig into the formation; the total length of the working edge is large, so the wear is relatively reduced. The cone bit can adapt to a variety of strata from soft to hard. According to the number of cone, it can be divided into single cone bit, three cone bit and assembled multi cone bit. According to the cutting material, it can be divided into steel teeth (milling teeth) and inserted teeth cone bit.
1.2 PDC bit is a polycrystalline diamond composite chip drill, and refers to the abbreviation of the head. The shape of the composite chip is a circular cutting tool which is inlaid and welded on the cylinder, and the cutting tool is inlaid on the drill body to become a PDC drill. PDC bit is much cheaper than natural diamond bit, but it is only suitable for soft to medium hard formation. PDC bit developed rapidly after it was manufactured and used successfully in the early 1970s. It can be used with low WOB and high rotation speed, high bit footage and low unit footage cost. In some oilfields of China, diamond polycrystalline composite chips are used for inlaying and welding on scraper, and great effects are obtained.
At present, PDC bits are designed with cutting wings. With the increase of the number of cutting wings, the impact load acting on the cutting teeth decreases, the controllability of the bit increases, and the life of the bit extends. On the contrary, with the decrease of the number of cutting wings, the drilling performance of the bit improves, and the bit has a higher drilling speed. Generally speaking, the larger the formation strength is, the more the number of cutting teeth is, and the more the number of cutting wings is in general. The number of PDC bit wings is no less than 3, but there are few more than 10.
2. Comparative analysis of rock breaking mechanism between roller bit and PDC bit
2.1 The mechanism of rock breaking by roller bit. Under the action of bit pressure and drill string rotation, the teeth crush and dig into the rock, and at the same time produce certain sliding and shearing rock. When the cone rolls at the bottom of the well, the teeth on the cone successively impact and press into the formation. This effect can crush part of the bottom rock, and cut off the remaining part of the rock between teeth by the shear effect brought by the roller sliding, so that the bottom rock is completely broken and the well can be extended.
2.2 Rock breaking mechanism of PDC bit. The working principle of PDC bit is basically the same as that of scraper bit.
(1) When PDC bit is drilling into some hard formation, it presses the rock under the action of WOB, which makes the rock in contact with diamond in a very high stress state and makes the rock appear plasticity.
(2) In the plastic (or rock is plastic under stress) formation, diamond digs into the formation and causes the front rock to break or plastic flow under the action of bit torque, which separates from the rock matrix and forms rock debris.
(3) In the rock with high brittleness, the stress produced under the action of WOB and torque makes the rock show brittle fracture, that is to say, the rock is destroyed by shear and tension. In this case, the rock breaking speed of diamond bit is higher, and the volume of rock breaking is much larger than that of displacement after diamond digging.
(4) In hard rock, due to the limitation of the strength of diamond itself, the bit pressure on the larger size diamond is not enough to cause the plastic deformation in the rock, so the diamond with fine particles is generally used to make impregnated diamond bit for drilling, which is characterized by micro cutting, carving and other ways to break the rock depending on the angle of diamond. The cuttings thus separated are basically fine-grained powder, and the working efficiency and service life of the bit are very low.
3. Applicable conditions of rotary rock drill bits and PDC bits
3.1 The application scope of rotary rock drill bit is the most widely used in petroleum drilling and geological drilling. The rotary rock drill bit has the effect of impacting, crushing, and shearing the formation rock when it rotates. Therefore, rotary rock drill bit can adapt to various formations, soft, medium, and hard. Especially after the emergence of jet cone roller bits and long nozzle cone roller bits. The drilling speed of roller cone bits is greatly increased. It is a major revolution in the development history of roller cone bits. According to the type of teeth, roller cone bits can be divided into milled teeth (steel teeth) roller cone bits and inserts (hard alloy tooth roller cone bits are installed on the roller cone; according to the number of roller cones, they can be divided into single rotary rock drill bit and tricone drill bit and assembled multi-cone bits. The tricone drill bits are the most widely used at home and abroad.
3.2 Application scope of PDC bit at present, often uses well section, oil-based mud, or water-based mud used in non reducing well section where bit needs to work for a long time at the bottom of the well. PDC bit also has advantages in high speed drilling tools, such as turbodrill, screw drill or deviation section.
PDC bit is often used in the formation with low compressive strength, poor cementation, low abrasiveness or thin interlayer, such as salt rock, gypsum rock, marl, limestone, etc., and the formation with medium compressive strength, certain abrasiveness and brittleness, such as sandstone, siliceous shale, porous carbonate rock and gypsum rock. But PDC bit is in high compressive strength, tight cementation like the abrasive sandstone, chert and granite, corundum, pyrite and grave, the effects are not good.
Many service companies and drilling contractors use rock compressive strength analysis software to determine the hardness of the formation. These computer analysis models of rock compressive strength use logging analysis technology to analyze and determine the triaxial compressive strength of the formation. Rock compressive strength analysis software can help the drilling contractor to determine the drillable well section of PDC bit, optimize bit selection and determine the optimal drilling parameters. The development and application of this software can promote the use of PDC bit.
4. Advantages and disadvantages of 4 cone bit and PDC bit
4.1 Advantages and disadvantages of roller bit
(1) The cone bit is suitable for various strata, so it is the most widely used bit.
(2) The rock cuttings produced by the broken rock of the cone bit are larger, which is helpful to distinguish the rock cuttings and judge the geological conditions more accurately.
(3) The service life of cone bit is not long enough and the footage is small, which increases the tripping times and affects the whole construction progress. Moreover, frequent tripping prolongs the immersion time of mud to oil and gas reservoir, causes serious damage to oil and gas reservoir and affects the exploitation of oil and gas.
(4) The core of cone bit can not be reused, which increases the drilling cost to a certain extent.
(5) Due to the limitation of its structural characteristics, the cone bit is easy to fall to the bottom of the well and cause downhole accidents.
4.2 Advantages and disadvantages of PDC bit
(1) PDC bit is suitable for high speed, high displacement and low WOB, so the requirement of equipment is relatively high.
(2) PDC bit’s working principle is basically the same as scraper bit, so it generally requires lower WOB and higher rotation speed. The bit pressure of PDC bit is generally 20-40% of that of the same size bit when it is used on site.
(3) PDC bit is composed of bit matrix and diamond composite sheet. When cutting rock, the composite sheet mainly contacts with the rock. The matrix will not be damaged basically, so the matrix can be reused. To a certain extent, the drilling cost is saved.
(4) PDC bit is not well used in abrasive sandstone, chert and granite, corundum, pyrite and gravel with high compressive strength and tight cementation.
(5) When PDC bit is drilling, micro cutting is realized by the edge angle of diamond. To break rocks by carving, etc. The cuttings separated in this way are basically fine-grained powder. It is not easy to accurately judge the downhole situation when cuttings logging is used in the field.
(6) Because of some characteristics of PDC bit itself, it causes the problems of deviation and azimuth control in directional well, so it is often used in field directional well.
5. Development prospect of 5 cone bit and PDC bit
The advantages of roller bit and PDC bit are very obvious in the process of drilling. The roller PDC mixed bit came out and was used in the field drilling, and achieved remarkable results. With the development of science and technology, there will be more and more advanced bit structure and drilling technology.
Great Drill Bits has roller cone bits for sale and great bit for sale, and out quality and service is trustworthy. Welcome to know more about us and purchase our products.
In the process of drilling, drill bit is the main tool to break rock, and borehole is formed bya drill bit breaking rock. The formation of a well is good or bad, and the length of time it takes is not only related to the rock characteristics of the drilled formation and the performance of the bit itself, but also related to the matching degree between the bit and the formation. The reasonable selection of bit plays an important role in improving the drilling speed and reducing the comprehensive cost of drilling.
The bit is one of the important tools for oil drilling. Whether the bit adapts to the rock property and its quality plays a very important role in the selection of drilling technology, especially in the aspects of drilling quality, drilling speed and drilling cost. PDC bit is a rock breaking tool widely used in the oil and gas exploration and development industry today which effectively improves the mechanical drilling tools and shortens the drilling cycle.
Bit is one of the main drilling equipment. According to the different working environment and regional environment, the specification and shape of bit should also be different. When drilling oil, the bit should be selected reasonably and scientifically based on the specific needs and design scheme.
At present, there are many kinds of bits used in the petroleum industry. According to different drilling methods, the bits can be classified into diamond bits, roller bits and scraper bits. These three kinds of bits are the most basic ones.
Because of the excellent cutting performance of diamond drill bits rock, the diamond bit can drill at high speed and enlarge the drilling depth to a certain extent when being selected as oil drilling tool. In the process of drilling oil with diamond bit, the following aspects need to be paid attention to:
First, the price of diamond bit is relatively high, so we should operate it carefully to reduce the damage degree;
Secondly, the diamond bit has some defects in thermal stability, so the cooling performance and cleaning condition of the bit should be guaranteed when it is used;
Thirdly, its texture is relatively brittle, so the impact resistance of the diamond bit will be relatively poor, so we should strictly follow the relevant rules of the diamond bit to carry out strict and standardized operation.
When selecting a bit as an oil drilling tool, it is necessary to select the bit according to the actual situation of the drilling equipment, the actual conditions of the formation, the geological data of the adjacent oil wells and the formation data. During the selection, the following issues need to be considered:
First of all, we need consider whether there is soft and hard interlacing in the drilling formation;
Secondly, it should consider whether anti deviation drilling and curve operation are needed in the oil drilling work;
Thirdly, the actual depth of different drilling sections in the same well should be considered;
Finally, drilling geology, formation abradability and hardness should be considered.
Great Drill Bits has roller cone bits for sale and clay drill bit for sale, and out quality and service is trustworthy. Welcome to know more about us and purchase our products.
Horizontal Directional Drilling(HDD for short) is a modern trenchless construction technology that combines the directional drilling technology of the petroleum industry with the traditional highway pipe jacking technology.
In recent years, with the improvement of scientific and technological level, the horizontal directional drilling rig and its supporting technical tools have been continuously improved and perfected, the performance of the whole machine has been greatly improved, and the horizontal directional drilling crossing technology has also been widely used, especially in urban municipal pipeline construction and oil and gas pipeline crossing river projects have more unique advantages. The reamer is an important part of the horizontal directional drill bit to complete its reaming operation during the construction process, which will be directly related to the success or failure of the pipe laying.
Reamer is a kind of power equipment used for reaming pipes during reaming operation, including roller cone reamer and PDC reamer. The main function of reamer is to cut and expand the guide hole along the curve of the guide hole. Tungsten carbide alloy teeth and nozzles are installed on the reamer, the former is mainly used for cutting and squeezing rock and soil layers, and the latter is mainly used for mud jet.
The horizontal directional drilling crossing technology principle: through the computer-controlled guidance and detection, a small-diameter pilot hole with the same design curve will be drilled first, and then a reamer will be installed on the head of the drill rod at the outlet end of the pilot hole to pull back and expand the hole to guide. After the hole is expanded to the size that required, the rotary joint, the tube head and the pipeline will be connected to the rear of the reamer, and drag the product pipeline back to the enlarged guide hole to complete the construction process of pipeline crossing. The hole expansion operation is one of the key technical links in the horizontal directional crossing construction, and the key to the hole expansion operation is to select an efficient and safe reamer according to the actual conditions.
During the working procession, the forward movement of the reamer needs to overcome the positive pressure resistance and friction resistance of the rock layer or soil body, and the rotary movement of the reamer needs to overcome the resistance torque of the rock layer or soil body to the tool and the friction torque on the surface of the reamer.
The optimization of the shape and size of the reamer has a great influence on the resistance and torsion torque during the working procession, which is directly related to the working efficiency of the horizontal directional drilling machine. It can be seen that the analysis and research on the selection of reamer and engineering application are of great significance for the smooth progress of horizontal directional drilling construction.
The enlargement of horizontal directional drilling through the rock layer should focus on the following three aspects: the service life of the reamer, the torque value generated by the reamer at each stage of reaming, the efficiency and economics of reaming. In addition, the reaming process also plays a certain role in correcting the guide hole. If the guide hole is only bent at a small angle, after selecting the appropriate reamer, the ideal smooth hole can be achieved through the reaming operation. For example, in a hard and uneven formation, the reamer tends to deflect to the soft formation, that is, to the direction of least resistance, and long-term use will cause damage to the reamer. In practice, flexible choices should be made according to the conditions of the rock formation, the ability to traverse the equipment, the diameter of the hole expansion, and the condition of the traversing mud.
During the drilling process of conventional diamond PDC bit, based on the affection of the shearing action of PDC cutting teeth, most of rock debris obtained is mostly fine sand with very small size, which cannot be accurately geologically seized and evaluated.
The design concept of the core-while-drilling bit is to remove 1-2 teeth in the center of the normal PDC bit. During the normal drilling process, the core is continuously formed in the center area of the bit without affecting the cutting structure of the bit.
When the length of the small-sized core is continuously increased to the nominal length, it will contact a core destruction device and cut off the core using lateral force. There is a larger and deeper groove in the middle of the two front blades, and the small-sized core will move into the annulus through this hollow area. This hollow area is always kept open to prevent the risk of blockage of a drill bit.
Compared with the traditional PDC bits, the advantages of core-while-drilling bits are:
1. It can increase the mechanical drilling speed. The cutting surface of the common drill bit has the lowest drilling speed in the center position. The new drill bit avoids it.
2. It can improve the quality of cuttings and form micro-cores for geological analysis and evaluation without having to repeatedly drill, which saving costs.
3. The stability of the drill bit can be strengthened, and the central core column can effectively prevent the eddy and lateral vibration of the drill bit, so that the outer cone cutting teeth are prevented from being subjected to a large impact load, thereby improving the drill bit service life.
